Hydraulic Adaptors‍

allow close coupling of hydraulic pumps directly to
the flywheel/flywheel housing of motors/engines

Getting the most out of your machinery often depends on close integration between all components. An organisation that manufactures and integrates all the diverse components of a drivetrain provides the experience to help you select the best component combination for your application. jbj Techniques’ in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery.

Page contents

  1. Hydraulic Adaptors
  2. Electric motor ~ Hydraulic pump adaptors (safe area)
  3. Electric motor ~ Hydraulic pump adaptors (hazardous area)
  4. Diesel Engine ~ Hydraulic pump adaptors
  5. Petrol engine ~ Hydraulic pump adaptors
  6. Contact details

Hydraulic Adaptors

Designed primarily to allow the close coupling of hydraulic pumps to a variety of prime movers, such as diesel/petrol engines, electric, air/pneumatic or hydraulic motors, the hydraulic adaptor range can also be used in the connection from prime mover to alternative driven parts i.e. gearboxes, generators, water or vacuum pumps etc. An additional range of engine front PTO adaptors, which provide additional connection between the engine pulley and the driven part are also available.
Hydraulic pump to motor/engine adaptors
The kit comprises of a bellhousing and flexible drive coupling that are fully machined to suit the driving and driven components. These can be to suit either shaft to shaft, flange (flywheel) to shaft or even flange to flange connections.
jbj's in house design team and manufacturing facility provide tailored solutions for your applications at competitive pricing and on-time deliveries.
Pump shaft alignment is key to preventing unnecessary wear and damage to the pump shaft seal and bearing. Improper alignment may lead to premature pump failure.
Also to be considered are unwanted torsional resonant frequencies in the system which can quickly cause damage to components in the drivetrain and reduce system life and performance.
Improper pump installation can lead to premature failure, increased maintenance costs and reduced production levels of final product.
Jbj Techniques can advise on the correct installation of hydraulic pumps into Industrial / mobile / marine / machine tool / agricultural / offshore industries and can specify complete driveline systems from their extensive range of components which are available from stock or manufactured to order, albeit simple or complex, standard or bespoke.

Electric motor – Hydraulic pump adaptors (safe area)

jbj Techniques Limited offer the most comprehensive range of bellhousings in Europe. Designed to connect electric motors with frame size IEC D56 - D400 (0.06kW – 750kW) and can be compatible with electric motor 'B5' or 'B14' flange configurations. Accompanying the metric frame units above is a complete range of mountings to suit Nema and imperial frame motors with 'C' face or 'D' flange fitments.
With fully machined torsionally flexible spider, or torsionally rigid gear couplings available, jbj ensure the most suitable combination is selected for the application in hand. The spider couplings are available in various materials including aluminium, grey cast iron, nodular iron, steel and stainless steels and can be finish machined with parallel, taper or splined bores to DIN, SAE, ANSI or ISO standards.
Bellhousings can be manufactured in aluminium or cast iron material as standard, however, units can be produced in a variety of exotic materials on request.
The aluminium product range is produced in either monoblock or composite formats giving great flexibility in design and allows for early delivery time, often with same or next day delivery possibilities.

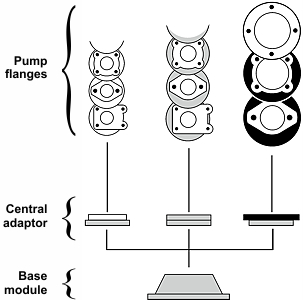

Hydraulic pump to electric motor flanges
Hydraulic pump to electric motor flanges
See pages 40 to 44 of the Pump Drive Components technical specification catalogue
For applications where low noise levels are a requirement then a complete range of anti-vibration and noise reduction components add to the range.

Electric motor – Hydraulic pump adaptors (Hazardous Area)

Designed to meet the exacting safety standards of the offshore and chemical process industries, jbj Techniques Ltd. produce adaptor kits certificated to Directive 2014/34/EU II2GD-IM2-TX -50 C< Service Temp < +105 C. Harmonised standards BS EN 1127:1, BS EN 13463:1, BS EN13463:5, BS EN 50303, BS EN 1834-1,BS EN 1834-3.
Generally manufactured in Cast or Nodular iron, bellhousings can be produced in steel, stainless steel or alternative exotic materials on customer request.

Couplings supplied for these applications are the jbj Techniques 'JXL' pin and bush range which provide an anti-static and flameproof drive which meet zone 1 area requirements, conforming to all of the above standards.

Also available are spider and gear couplings which are certified to zone 2 standards. (Contact jbj Techniques for details)

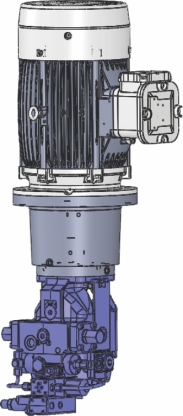

An important development of equipment for use within hazardous areas is the wet mount series of bellhousings. Commissioned to research and develop a product that would control the high temperature generated by a piston pump shaft seal when working within cycling applications. A little considered issue is the frictional heat generated at the shaft seal when the application requires the pump to cycle between different pressures causing the seal temperature to increase. This process will often take the seal temperature out and above the levels required by the relevant ATEX standards requirement. This specially designed assembly allows a pumped cooling flow to be passed over the seal face and through an auxiliary cooler, this in turn reduces the seal face temperature which can be maintained at an acceptable level.

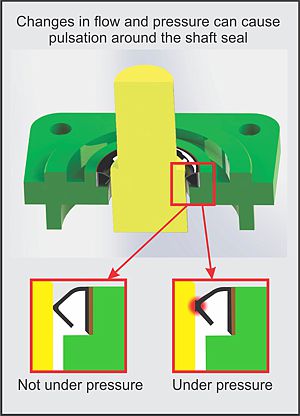

Shaft seal pulsation
Shaft seal pulsation
With a vast array of components to select from, jbj are well placed to provide all required components to support the required cooling system.

Diesel Engine – Hydraulic pump adaptors

A complete range of bellhousing and couplings exist for the connection of a diesel engine flywheel to a specified driven component, be it an oil hydraulic pump, water pump, generator or similar device. With the bellhousing available in various materials to suit all application areas. With a standard range to connect Diesel engines with SAE dimensions from SAE '6' to SAE '0' jbj are well placed to satisfy the majority of customer requirements. Couplings to complete the assembly are available in either torsionally flexible or torsionally rigid design and can be supplied to suit SAE flywheel dimensions from SAE 6.5” to SAE 18”. Diesel engine adaptors - Pump Drives catalogue and pages 30 to 32 of Torsional Couplings catalogue.
For hydraulic pumps to be mounted to engines that do not conform to SAE dimensions, we offer a full range of assembly parts, some of which (but not all) are shown below.
Pump mounting for Cummins® B3.3 - Shown with LK 100
Cummins® B3.3
Shown with LK 100
Pump mounting for Deutz® FL 1011 - Shown with LK 100
Deutz® FL 1011
Shown with LK 100
Pump mounting for Ford VSG 413 - Shown with LK 100
Ford VSG 413
Shown with LK 100
Pump mounting for Ford LRG 425 - Shown with LK 100
Ford LRG 425
Shown with LK 100
Pump mounting for Kubota Super Mini - Shown with LK 80
Kubota Super Mini
Shown with LK 80
Pump mounting for Kubota Super 05 - Shown with LK 80
Kubota Super 05
Shown with LK 80
Pump mounting for Kubota Super 03 - Shown with LK 80
Kubota Super 03
Shown with LK 80
Pump mounting for Perkins® 103-10 - Shown with LK 100
Perkins® 103-10
Shown with LK 100
Pump mounting for Perkins® 104-22 - Shown with LK 100
Perkins® 104-22
Shown with LK 100
All bellhousings within this range can be finished machined to accept any, piston, vane or gear pump interfaces requested by customer.
As with the electric motor range of product jbj offer complete solutions for ATEX environments, using our well proven 'JXL' coupling range which has standard design to connect to the engine flywheel.
Directive 2014/34/EU II2GD-IM2-TX  -50°C ≤ Service Temp ≤ +105°C
Harmonised Standards: BS EN 1127:1  BS EN 13463:1  BS EN 13463:5  BS EN 50303

Petrol engine – Hydraulic pump adaptors

Petrol engine adaptors have been developed for use with industrial petrol engines. Design exists to suit Honda, Briggs and Stratton, Kawasaki, Kubota, Hatz, Mag, Robin, Suzuki, Winsconsin, to name but a few, all adaptors can be finished to accept most hydraulic pumps. Adaptors to suit engine crankshaft drives and for vertical mounting are available on request.

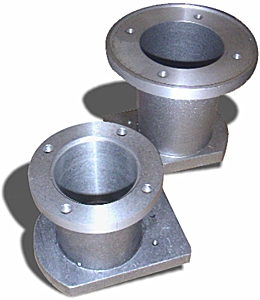

Petrol engine adaptors
For pump mounting machine codes and adaptors please refer to page 7 via this link.

Additional reference catalogues:
‍Compatible couplings - Pump Drive Components catalogue and Torsional Couplings catalogue.
‍
Diesel engine adaptors - Pump Drives catalogue and pages 30 to 32 of Torsional Couplings catalogue.
jbj Techniques is a specialist manufacturer and distributor of high quality products for the mechanical power transmission & fluid power sectors.

Product specification; team of design engineers to assist in design process simple or complex, standard or bespoke.

Prompt product supply; large stocks for next day delivery on many items.

Machine shop; full machining services for bespoke designs.

High quality mechanical and fluid power products are always available straight from our comprehensively stocked warehouse, but, we are more than that! If you need more, be it the smallest drive component through to complex drive line component packages, then speak to our experienced sales team who will provide a solution based upon your application requirements.

jbj Techniques offers a high level of in-house expertise plus a huge selection of products to meet a very broad range of customer applications. From specification, through technical advice and manufacture to after-sales support,jbj Techniques provides a comprehensive and valued service to the power transmission and hydraulics industries. The company fields a UK-wide team of technical sales engineers to ensure that the business is close to its customers, and it enjoys excellent associations with European manufacturers, acting as sole UK distributor in many cases.
jbj Techniques' in-house design team and manufacturing facility provide tailored solutions for
your applications at competitive prices with quick delivery.
Questions?

Contact
jbj Techniques Limited
for friendly help and advice
telephone: +44 (0)1737 767493
email:
happy to help at jbj Techniques Limited, quality products for mechanical and fluid power
Extensive knowledge, extensive ability, extensive products. Customer needs are the centre of our business.
#DriveLineHarmony
