Oil Bath Clutches

Free standing clutches of the multiple plate, oil bath type. These clutches are particularly suited to arduous applications and are capable of withstanding high radial loads.

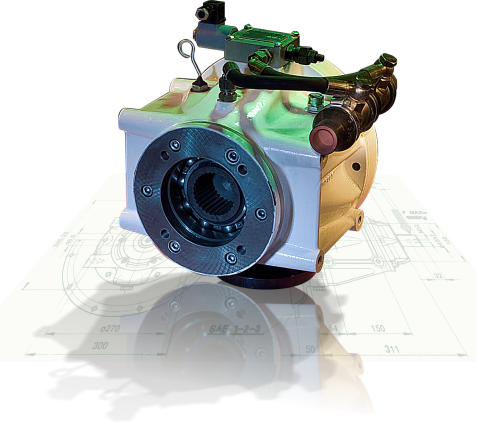

PFI Series Oil-Bath Clutches

PFI 60 & PFI 120 - multiple disc clutch in oil bath, hydraulically operated with 12 volt or 24 volt DC solenoid selector for remote control. Cylindrical input shaft; female splined shaft for hydraulic pump connection. SAE 3-2-1 housing or free standing mounting possibilities. Either right or left hand input rotation (to be specified with order). Oil must be cooled by an external heat exchanger.

» Cylindrical input shaft; female splined shaft for hydraulic pump connection.

» SAE 3-2-1 housing or free standing mounting possibilities.

» Either right or left hand input rotation (to be specified with order).

Power take off selection is made multiplying the net input power by the service factor;

1.0 for centrifugal pumps,

1.3 for hydraulic pumps,

1.5 for direct winch drivers,

2.0 for crushers.

The resulting power is to be below the line on the graph.

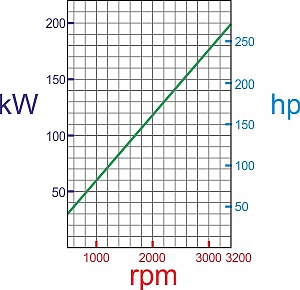

PFI 60 power curve

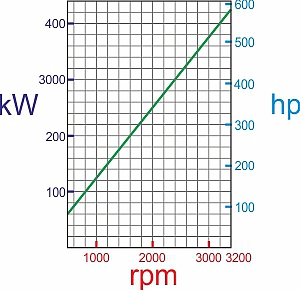

PFI 120 power curve

The PFI 60 and PFI 120 are manufactured with input and output shafts. The PFI 60P and PFI120P are intended for hydraulic pump direct connection with the same pump adaptor flanges and couplings as on AM 230 - 450 pump drives which means the possibility to fit a large number of pumps with standard components.

Further information including dimensions, weight, torque, etc » pages 1 - 3 of this catalogue

Specification of oil bath clutches & gearboxes found in this on-line » catalogue « link
