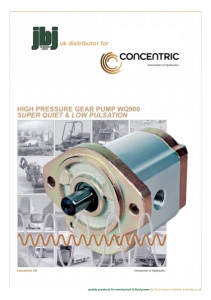

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk HIGH PRESSURE GEAR PUMP WQ900 SUPER QUIET & LOW PULSATION
2 SOUND POWER CURVES FLANGE CODE 03, 06, 07, 12 4 - 8 10 - 11 THE POWER OF THEWQ900 A SERIES Concentric is one of the world’s leading manufacturers of hydraulic pumps. In recent years we have focused on important markets, such as materials handling and vehicles, and now the result are in: a series of high performance hydraulic pumps. The WQ900 series builds on the versatile technical platform represented by the W series. WQ900 High Pressure Gear Pumps are optimized for demandingwork, with harsh weather conditions, ruggedoperations and long service intervals. The WQ900 series is a range of cost-efficient group ll pumps for all applications inwhich the customer’s demands for quality and reliability are particularly high. The ”Q” stands for super ”quiet” operation and outstandingproperties of theWQ900 result from: 1st a new and carefully engi neered tooth geometry. 2nd an innovative approach togear flank engagement. 3rd a reduced volume of trapped oil and 4th advanced trapped oil management. The size of pressure pulsation from the pumps is reflected in the pump noice level and the pressure pulsation is minimized to 25%. We achieved a reduction for the pressure pulsation of 75%by the newly developed, computer generated gear design for theWQ900 pumps . The noise levels are shown on page 10-11. Pictures on front page are used with the kind permission of eg: Atlet, BT, Huddig, Scania, Toro and Volvo Construction Equipment. The right to modifications for technical improvements is reserved. MULTIPLE PUMPS 9 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
3 10 sec. at minimum continous pressure intermittent pressure 20 sec. at minimum Time Pressure pI pII Peak pressure pIII pIII pII pI WQ900 DESCRIPTION TheWQ900 pumps are part of theW-family of gear pumps. The WQ900 pumps come in single or multiple configuration of up to four sections. The basic pump is of a three piece modular design. Mounting flange and rear cover are of cast iron. The pump body is manufactured from high strength aluminium alloy. For optimum strength, gears and shafts are precision machined in one piece. The 13-tooth gear geometry has been optimized for low noise level. All shaft bearing surfaces are Teflon® coated and designed for long service life. They are continually cooled and lubricated by a controlled flow of fresh oil. This enables operation across a wide speed range at very high loads. Multiple pumps in theWQ900 range are very compact. The drive shaft is capable of transmitting high torque even to the rear section. Each section has its own inlet and pressure ports. Single inlet features are optional for 2 and 3 section unit. Awide range of mounting flanges and port sizes are available to meet international standards. Operating pressure range Inlet port: continuous, minimum -0,20 bar intermittent, minimum -0,35 bar maximum +2,00 bar Outlet port (See tables on pages 4-7) Product has been tested to 1,000,000 cycles at pl. Pressure pll is permitted at maxi. 20 sec loaded following 10 sec minimum unloaded. Product has been tested to 500,000 cycles at pllI. Above represents performance which can be expected from units incorporating flange flange port styles. Speed range Minimum speed for all pump sizes is n = 500 rpm at maximum pressure pl. Maximum speed for single pumps depends on the pump model in question and can be identified from tables on pages 4-7 for respective models. Maximumspeed formultiple pumps is the lowest one specified (See tables on pages 4-7) for any section of the configuration in question. Noise performance data according to page 10-11. Hydraulic fluids. The use of HL-or HLP-hydraulic oil according to DIN 51 524 is recommended. The permissible viscosity for all WQ9A pumps ranges from 750 to 10 mm2/s. The recommended operating viscosity range is from 40 to 16 mm2/s. Thepermissible cold start viscosity is 2000mm2/s. We recommend to contact Concentric before using fire resistant or bio-degradable fluids. Temperature range Ambient temperature mini. -25° C maxi. +80° C Fluid temperature continuous operation maxi. +90° C short term operation maxi. +105° C Please note Viscosities -when operating at above temperature limits-have to remainwithin the range specifiedunder ”Hydraulic Fluids”. Fluid cleanliness Fluid cleanliness according to ISO 4406/1986 Code 18/14 or better is required in order to assure the pump’s high level of efficiency in the long term. Drive arrangement Flexible couplings are preferred for direct drives. Please contact Concentric for indirect drive requirements. Pumps with outboard side load bearing are available. Mounting position As required. Symbols Single pump Double pump Triple pump Quadruple pump PERFORMANCE DATA General data Displacement V 5 - 23 cc/rev Speed n 500 - 4000 rpm Pressure rated pressure pl up to 230 bar intermittent pressure pll up to 255 bar peak pressure plll up to 276 bar Operating temperatures t up to 105°C Average volumetric efficiency 97% The maximum values for n, pl and t for a given pump specification may be applied simultaneously. Options • SAE mounting flange, through bolt model. • Rectangular flanges • Splined, tapered or straight shaft with key, tang shaft. • Thread ports or flange ports. • Clockwise or anti-clockwise rotation. • Integrated valve features. • Single inlet for multiple units. Model code example for a single pump = Type = Range = Design = # of sections = Seal material = Displacement per section = Rotation = Mounting flange = Drive shaft = Portings = Valve options Pressure pulsation minimized to 25 % The size of pressure pulsation from the pumps is reflected in the low pump noise level. 1 2 3 4 5 6 7 8 9 10 11 WQ 09 A 1 B 050 R 03 BA 150 N 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
4 FLANGE CODE 03 (SAE A 2 BOLT) = Type WQ - Pump = Range 09 - 900 = Design A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise Model code example for a single pump = Mounting flange 03 SAE A 2-Bolt = Drive shaft BA SAE A Key Ø 0,75” FA SAE A Spline 9-t = Portings 121 - G3/4” + G1/2” BSPP 122 - G1” + G3/4” BSPP 150 - 20 mm + 15 mm 4-b flange 151 - 26 mm + 18 mm 4-b flange = Valve options N - None Size Rated pressure * Maximum speed Dimensions Weight (bar) (rpm) A B (approx.) Shaft ’BA’ Shaft ’FA’ Port . ’121’/’150’ Port. ’122’/’151’ [mm] [mm] [kg] 050 - 5,1cc 230 230 4000 - 90,1 43,3 3,7 060 - 6,2cc 230 230 4000 - 91,6 44,0 3,8 080 - 8,3cc 230 230 4000 - 94,6 45,5 3,9 110 - 11,3cc 230 230 3600 - 99,0 47,7 4,1 140 - 14,5cc 230 230 3300 - 103,5 50,0 4,2 160 - 16,5cc 230 230 3000 - 106,4 51,4 4,3 190 - 19,6cc 230 230 3000 - 110,9 53,7 4,4 230 - 23,7cc 207 207 2800 3500 116,8 56,6 4,6 * PLEASE NOTE: On threaded ports max pressure is limited to 210 bar for size 5,0 cc - 23,0 cc displ 1 2 3 4 5 6 7 8 9 10 11 WQ 09 A 1 B 050 R 03 BA 150 N 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
5 FLANGE CODE 06 Size Rated pressure Maximum speed Dimensions Weight (bar) (rpm) A B (approx.) Port code ’160’ [mm] [mm] [kg] 050 - 5,1cc 230 4000 90,1 43,3 3,7 060 - 6,2cc 230 4000 91,6 44,0 3,8 080 - 8,3cc 230 4000 94,6 45,5 3,9 110 - 11,3cc 230 3600 99,0 47,7 4,1 140 - 14,5cc 230 3300 103,5 50,0 4,2 160 - 16,5cc 230 3000 106,4 51,4 4,3 190 - 19,6cc 230 3000 110,9 53,7 4,4 230 - 23,7cc 207 2800 116,8 56,6 4,6 Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WQ 09 A 1 B 050 R 06 NB 160 N For pump displacement 050-080 = Type WQ - Pump = Range 09 - 900 = Design A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise = Mounting flange 06 Rect. Ø 36,5 mm pilot = Drive shaft NB European Tapered shaft 1:8 = Portings 160 - 20 mm + 13,5 mm = Valve options N - None 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
6 FLANGE CODE 07 Size Rated pressure Maximum speed Dimensions Weight (bar) (rpm) A B (approx.) Port. c. ’150’ Port. c. ’151’ [mm] [mm] [kg] 050 - 5,1cc 230 4000 - 90,1 43,3 3,7 060 - 6,2cc 230 4000 - 91,6 44,0 3,8 080 - 8,3cc 230 4000 - 94,6 45,5 3,9 110 - 11,3cc 230 3600 - 99,0 47,7 4,1 140 - 14,5cc 230 3300 - 103,5 50,0 4,2 160 - 16,5cc 230 3000 - 106,4 51,4 4,3 190 - 19,6cc 230 3000 - 110,9 53,7 4,4 230 - 23,7cc 207 2800 3500 116,8 56,6 4,6 = Type WQ - Pump = Rated 09 - 900 = Design A = # of sections 1 - Single = Seal material B - Buna = Displacement per section (See table below) = Rotation R - Clockwise L - Counter clockwise Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WQ 09 A 1 B 060 R 07 MB 150 N = Mounting flange 07 Rect. Ø 80 mm pilot = Drive shaft MB European Tapered shaft 1:5 JA DIN 5482 Spline 9-t HA DIN 5480 Spline 14-t = Portings 150 - 20 mm + 15 mm 4-b flange 151 - 26 mm + 18 mm 4-b flange = Valve options N - None 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
7 Size Rated pressure Maximum speed Dimensions Weight (bar) (rpm) A B (approx.) Shaft ’QB’ ’150’/’160’ Port. Port. ’151’ [mm] [mm] [kg] 050 - 5,1cc 230 4000 - 87,6 40,8 3,7 060 - 6,2cc 230 4000 - 89,1 41,5 3,8 080 - 8,3cc 230 4000 - 92,1 43,0 3,9 110 - 11,3cc 230 3600 - 96,5 45,2 4,1 140 - 14,5cc 230 3300 - 101,0 47,5 4,2 160 - 16,5cc 230 3000 - 103,9 48,9 4,3 190 - 19,6cc 230 3000 - 108,4 51,2 4,4 230 - 23,7cc 207 2800 3500 114,3 54,1 4,6 = Type WQ - Pump = Range 09 - 900 = Design A = # of sections 1 - Single = Seal material B - Buna = Displacement per section (See table below) = Rotation R - Clockwise L - Counter clockwise Model code example for a single pump = Mounting flange 12 Through-bolt Ø 52 mm pilot = Drive shaft QB Wet Tang = Portings 150 - 20 mm + 15 mm 4-b flange 151 - 26 mm + 18 mm 4-b flange 160 - 20 mm + 13,5 mm 4-b flange = Valve options N - None 1 2 3 4 5 6 7 8 9 10 11 WQ 09 A 1 B 060 R 12 QB 150 N FLANGE CODE 12 1 2 3 4 5 6 7 8 9 10 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
8 Size Rated pressure Maximum speed Weight (bar) (rpm) (approx.) Port. ’521’ Port. ’522’ [kg] 050 - 5,1cc 4000 - 3,7 060 - 6,2cc 4000 - 3,8 080 - 8,3cc 4000 - 3,9 110 - 11,3cc 3600 - 4,1 140 - 14,5cc 3300 - 4,2 160 - 16,5cc 3000 - 4,3 190 - 19,6cc 3000 - 4,4 230 - 23,7cc 2800 3500 4,6 can be taken from Tables on pages 4-7 REAR PORT Rear port end cover can be combined with all flange and shaft options. All technical data from the preceding pages apply to this model. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
9 MULTIPLE PUMPS Size P Q Weight R S Weight T Weight N L Weight mm mm kg mm mm kg mm kg mm mm kg Shaft end section Rearsection 2nd & 3rdsection A1-section 060 - 6,2cc 77,6 44,0 3,1 73,4 25,6 2,7 59,1 1,8 75,1 41,5 2,7 080 - 8,3cc 80,0 45,5 3,2 76,4 27,0 2,8 62,1 1,9 78,1 41,5 2,7 110 - 11,3cc 85,0 47,7 3,4 80,8 29,2 3,0 66,5 2,1 82,5 45,2 3,0 140 - 14,5cc 89,5 50,0 3,5 85,2 31,5 3,1 71,0 2,2 87,0 47,5 3,1 160 - 16,5cc 92,4 51,4 3,6 88,1 33,0 3,2 73,9 2,3 89,9 48,9 3,2 190 - 19,6cc 96,9 53,7 3,7 92,7 35,2 3,4 78,4 2,4 94,4 51,2 3,4 230 - 23,7cc 102,8 56,6 3,9 98,6 38,2 3,5 84,3 2,6 100,3 54,1 3,5 The two following parameters are of the utmost importance when selecting multiple pumps and must never be exceeded: -Drive shaft load index ”A” -Internal coupling load index ”K” Maxi. load index K 5240 for double pump K = (p2 x V2) for triple pump K = (p2 x V2) + (p3 x V3) for quadruple pump K = (p2 x V2) + (p3 x V3) + (p4 x V4) -Maximumdrive shaft load index ”A”, see table below for double pump A = (p1 x V1) + (p2 x V2) for triple pump A = (p1 x V1) + (p2 x V2) + (p3 x V3) for quadruple pump A = (p1 x V1) + (p2 x V2) + (p3 x V3) + (p4x V4) Drive Load index Drive Load index shaft A shaft A BA 10488 MB 10488 FA 5100 NB 10488 JA 6215 QB 5012 Note: P = actual pressure in bar, V = applicable displacement from Table page 4-7. In multiple pumps, shaft end section must have largest displacement. Each consecutive section must have displacement equal to or smaller than section proceeding. Concentricmultiple pumps are also availablewith reducednumber of inlets. Please contact Concentric for details. Please, contact Concentric for pump applications requiring independently sealed sections. At left are shown the dimensions for the through bolt type pumps. Shaft end section quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
