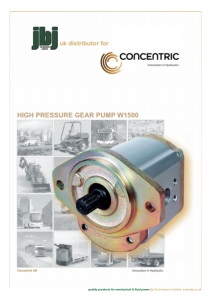

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk HIGH PRESSURE GEAR PUMP W1500
EFFICIENCIES FLANGE CODE 20, 22, 23 4-9 10-11 THE POWER OF THEW1500 B SERIES Concentric is one of the world’s leading manufacturers of hydraulic pumps. Our focus on important strategic markets such as trucks, construction equipment andmaterials handling has brought results: a series of high-performance hydraulic pumps. The W1500 series builds on the versatile technical platform represented by the W series. W1500 High Pressure Gear Pumps are optimized for demanding work, with harsh weather conditions, ruggedoperations and long service intervals. The W1500 series is a range of cost-efficient small pumps for all applications in which the customer’s demands for quality and accessibility are particularly high. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
3 Operating pressure range Inlet port: continuous, minimum -0,20 bar intermittent, minimum -0,35 bar maximum +2,00 bar Outlet port Product has been tested to 1,00,000 cycles at pll. Pressure pll is permitted at maxi. 20 sec loaded following 10 secminimumunloaded. Product has been tested to 500,000 cycles at pII. Above represents performancewich canbe expected fromunits incorporatingflange flangeport styles. Speed range Minimum speed for all pump sizes is n = 500 rpm at maximum pressure pI. Maximumspeed for single pumps depends on the pumpmodel in question and can be identified from Tables onwards for respective models. Maximum speed for multiple pumps is the lowest one specified on Tables onwards for respective models. Noise performance data according to DIN 45 635. Typical levels 200 barusingmineral oilwithviscosity of 40mm2/s and at temperature of 50° C at different speeds: W15B1-38 68dB(A) at n = 1500 rpm W15B1-38 74dB(A) at n = 2300 rpm W15B1-38 76dB(A) at n = 3000 rpm Hydraulic fluids. The use of HL-or HLP-hydraulic oil according to DIN 51 524 is recommended. The permissible viscosity for allW3Apumps ranges from 750 to 10 mm2/s. The permissible cold start viscosity is 2000 mm2/s. We recommend to contact Concentric before using fire resistant or bio-degradable fluids. Temperature range Amb. temperature, mini.-25° C; maxi. +80° C Fluid temperature, comntinuous operation, maxi. +90° C short term operation, maxi. +105° C Please note Viscosities -when operating at above temperature limits-have to remain within the range specified under ”Hydraulic Fluids”. Fluid cleanliness Fluid cleanliness according to ISO 4406/1986 Code 18/14 or better is required in order to assure the pump’s high level of efficiency in the long term. Drive arrangement Flexibble couplings are preferred for direct drives. Please contact Concentric for indirect drive requirements. Pumps with outboard side load bearing are available. Mounting position As required. Symbol Single pump Double pump Triple pump Quadruple pump PERFORMANCE DATA W1500 DESCRIPTION The W1500 pumps come in single or multiple configuration of up to four sections. The basic pump is of a three piecemodular design. Mounting flange and rear cover are of cast iron. The pump body is manufactured from high strength aluminium alloy. For optimum strength, gears and shafts are precision machined from one piece steel forgings. The 14-toothgear geo-metry has been optimized for low noise level. All shaft bearing surfaces are Teflon® coated and sizes are calculated for long service life. They are continually cooled and lubricated by a controlled flow of fresh oil. This enables operation across awide speed range at very high loads. Multiple pumps in theW1500 range are very compact. The drive shaft is capable of transmitting high torque even to the rear section. Each section has its own inlet and pressure ports. = Type = Series = Design = # of sections = Seal material = Displacement per section = Rotation = Mounting flange = Drive shaft = Portings = Valve options = ’N’ Specials Awide range of mounting flanges and port sizes are available to meet all international standards. General data Displacement V 19 ... 50cm3 Speed n 500 ... 3300 rpm Pressure rated pressure pl up to 276 bar intermettent pressure pll up to 300 bar Peak pressure pll up to 330 bar Operating temperatures t up to 105° C Average volumetric efficiency 97% The maximum values for n, pl and t for a given pump specification may be applied sim-ultaneously. Options • SAE mounting flange, through bolt model. • Splined, tapered or straight shaft with key, tang shaft. • Thread ports of flange ports. • Clockwise or anti-clockwise rotation. • Integrated valve features. Model code example for a double pump 4 sec. at minimum continuous pressure intermittent pressure 10 sec. at minimum Time Pressure pI pII pII pI 1 2 3 4 5 6 7 8 9 10 11 12 WP 15 A 1 B 190 R 04 DA 158 N N 1 2 3 4 5 6 7 8 9 10 11 12 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
21.80 21.68 21.0 33.3 41.2 SHAFT KA M8 . 13 19 55 INLET OUTLET INLET OUTLET COUNTER CLOCKWISE ROTATION CLOCKWISE ROTATION CODE 146 M10 . 20 DEEP CODE 147 CODE 151 M10 . 20 DEEP M8 . 13 DEEP M8 . 13 DEEP FLANGE CODE 04 (SAE A 2-bolt) 4 Size Maximum pressure Maximum speed Dimensions Weight (bar) P1 (rpm) A B (approx.) Port. ’146’ Port . ’147’ Port. ’151’ [mm] [mm] kg 190 - 19 276 3300 - 3300 150,0 89,3 8,0 230 - 23 276 3300 - 3300 154,2 91,4 8,3 280 - 28 276 3100 - 3100 159,4 94,0 8,4 330 - 33 276 3000 - 3000 164,6 96,6 8,6 380 - 38 276 2700 3000 3000 169,8 99,2 9,0 440 - 44 221 - 2800 2700 176,0 102,3 9,2 500 - 50 200 - 2700 2300 182,2 105,4 9,5 Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 15 A 1 B 190 R 04 KA 146 N 1 2 3 4 5 6 8 7 9 10 11 = Mounting flange 04 SAE A 2-Bolt Ø 82,5 mm pilot = Drive shaft KA SAE B Spline 13-t = Portings 146 - 25 mm + 19 mm 147 - 32 mm + 25 mm 151 - 27 mm + 19 mm = Valve options N - None = Type WP - Pump = Series 15 - 1500 = Design revision A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna V - Viton = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
FLANGE CODE 05 (SAE B 2-bolt) 5 Size Maximum pressure Maximum speed Dimensions Weight (bar) P1 (rpm) A B (approx.) Port. ’146’ Port . ’147’ Port. ’151’ [mm] [mm] kg 190 - 19 276 3300 - 3300 124,0 63,3 8,0 230 - 23 276 3300 - 3300 128,2 65,4 8,3 280 - 28 276 3100 - 3100 133,4 68,0 8,4 330 - 33 276 3000 - 3000 138,6 70,6 8,6 380 - 38 276 2700 3000 3000 143,8 73,2 9,0 440 - 44 221 - 2800 2700 150,0 76,3 9,2 500 - 50 200 - 2700 2300 156,2 79,4 9,5 KEY 6.35x6.35x28 SHAFT DA INLET OUTLET INLET OUTLET COUNTER CLOCKWISE ROTATION CODE 146 M10 . 20 DEEP CODE 147 M10 . 20 DEEP M8 . 13 DEEP M8 . 13 DEEP CLOCKWISE ROTATION M10 . 20 DEEP 101.60 101.55 (101.6 f7) SHAFT KA EXTERNAL INVOLUTE SPLINE SAE-STD. 16/32 DP 13 TEETH, 30° PRESSURE ANGLE FLAT ROOT SIDE FIT MAX. TORQUE = 270 NM CODE 151 Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 15 A 1 B 330 R 05 DA 146 N 1 2 3 4 5 6 8 7 9 10 11 = Mounting flange 05 SAE B 2-Bolt Ø 101,6 mm pilot = Drive shaft DA SAE B Straight Key Shaft KA SAE B Spline 13-t = Portings 146 - 25 mm + 19 mm 147 - 32 mm + 25 mm 151 - 27 mm + 19 mm = Valve options N - None = Type WP - Pump = Series 15 - 1500 = Design revision A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna V - Viton = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
6 Size Maximum pressure Maximum speed Dimensions Weight (bar) P1 (rpm) A B (approx.) Shaft code Shaft code Port code Port code Port code [mm] [mm] kg RB KA 146 147 151 190 - 19 276 276 3300 - 3300 124,0 63,3 8,0 230 - 23 276 276 3300 - 3300 128,2 65,4 8,3 280 - 28 260 276 3100 - 3100 133,4 68,0 8,4 330 - 33 220 276 3000 - 3000 138,6 70,6 8,6 380 - 38 190 276 2700 3000 3000 143,8 73,2 9,0 440 - 44 165 221 - 2800 2700 150,0 76,3 9,2 500 - 50 145 200 - 2700 2300 156,2 79,4 9,5 FLANGE CODE 14 (Through bolt Ø 52 mm pilot without shaft seal) SHAFT RB INLET OUTLET INLET OUTLET COUNTER CLOCKWISE ROTATION CODE 146 M10 . 20 DEEP CODE 147 M10 . 20 DEEP M8 . 13 DEEP M8 . 13 DEEP CLOCKWISE ROTATION CODE 151 M8 . 13 DEEP M8 . 13 DEEP Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 15 A 1 B 330 R 14 RB 151 N 1 2 3 4 5 6 8 7 9 10 11 = Mounting flange 14 Through-bolt Ø 52 mm pilot = Drive shaft RB Wet Tang KA SAE B Spline 13-t = Portings 146 - 25 mm + 19 mm 147 - 30,2 mm + 26,2 mm 151 - 27 mm + 19 mm = Valve options N - None = Type WP - Pump = Series 15 - 1500 = Design revision A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna V - Viton = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
7 Size Maximum pressure Maximum speed Dimensions Weight (bar) P1 (rpm) A B (approx.) Shaft code ’WA’ Port code ’155’ Port code ’156’ [mm] [mm] kg 190 - 19 276 3300 - 124,0 63,3 8,0 230 - 23 276 2800 - 128,2 65,4 8,3 280 - 28 276 2300 3100 133,4 68,0 8,4 330 - 33 276 - 3000 138,6 70,6 8,6 380 - 38 276 - 3000 143,8 73,2 9,0 440 - 44 221 - 2700 150,0 76,3 9,2 500 - 50 200 - 2300 156,2 79,4 9,5 FLANGE CODE 15 (Ø 50,8 mm pilot) KEY 4x7,5 DIN 6888 SHAFT WA INLET OUTLET INLET OUTLET COUNTER CLOCKWISE ROTATION CODE 155 M8 . 13 DEEP M8 . 13 DEEP M10 . 20 DEEP M8 . 13 DEEP CLOCKWISE ROTATION PORT 150 SAME DIMENSIONS FOR SUCTION- AND PRESSURE PORT CODE 156 SPRING LOCK WASHER 814 DIN 127 NUT M14x1,5 DIN 936 TORQUE 80+20 Nm CONE 1:8 M8 THREAD DEPTH 13 128.1 MOUNTING FLANGE 15 20 40 60 27 51 Model code example for a single pump 1 2 3 4 5 6 7 8 9 10 11 WP 15 A 1 B 330 R 15 WA 155 N 1 2 3 4 5 6 8 7 9 10 11 = Mounting flange 15 Rect. Ø 50,8 mm pilot = Drive shaft WA Tapered 1:8, M14 x 1,5 = Portings 155 - 20 mm + 20 mm 156 - 27 mm + 20 mm = Valve options N - None = Type WP - Pump = Series 15 - 1500 = Design revision A = # of sections 1 - Single 2 - Duplex 3 - Triplex 4 - Quadruple = Seal material B - Buna V - Viton = Displacement per section (See Code Displ. below) = Rotation R - Clockwise L - Counter clockwise quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Size P Q Weight R S Weight T Weight N L Weight mm mm kg mm mm kg mm kg mm mm kg Shaft end section Rear section 2nd & 3rd section A1-section 190 - 19 cc 105,5 63,3 7,0 104,5 40,3 5,0 82,5 4,1 131,5 89,3 7,4 230 - 23 cc 109,7 65,4 7,3 108,7 42,4 5,3 86,7 4,3 135,7 91,4 7,6 280 - 28 cc 114,9 68,0 7,5 112,9 45,0 5,5 91,9 4,6 140,9 94,0 7,9 330 - 33 cc 120,1 70,6 7,8 119,1 47,6 5,8 97,1 4,8 146,1 96,6 8,1 380 - 38 cc 125,3 73,2 8,1 124,3 50,2 6,1 102,3 5,1 151,3 95,2 8,4 440 - 44 cc 131,5 76,3 8,3 130,5 53,3 6,3 108,5 5,4 157,5 102,3 8,7 500 - 50 cc 137,7 79,4 9,1 136,7 56,4 7,1 114,7 6,2 163,7 105,4 9,5 MULTIPLE PUMPS Section 1 Section 2 Section 1 Section 2 Section 3 Section 1 Section 2 Section 3 The two following parameters are of the utmost importance when selecting multiple pumps and must never be exceeded: -Drive shaft load index ”A” -Internal coupling load index ”K” Maxi. load index K 10488 for double pump K = (p2 x V2) for triple pump K = (p2 x V2) + (p3 x V3) for quadruple pump K = (p2 x V2) + (p3 x V4) + (p4 x V4) -Maximum drive shaft load index ”A”, see table below: for double pump A = (p1 x V1) + (p2 x V2) for triple pump A = (p1 x V1) + (p2 x V2) + (p3 x V3) for quadruple pump A = (p1 x V1) + (p2 x V2) + (p3 x V3) + (p4x V4) Drive Load index Drive Load index shaft A shaft A DA 20976 RB 7210 KA 18240 WA 20976 Note: p = actual pressure in bar, V = applicable displacement in cc from table page 4-9. In multiple pumps, shaft end section must have largest displacement. Each consecutive section must have displacement equal to or smaller than section preceeding. Concentric multiple pumps are also available with reduced number of inlets. Please contact Concentric for details. Please, contact Concentric for pump applications requiring independently sealed sections. W1500 plus W900 pump assemblies are possible, please contact Concentric. At left are shown the diverge dimensions for the SAE A flange bolt type pumps. 8 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
CROSS SECTION Cross section of W1500 double pump Common suction port for two or three pump sections is available on request. Key design detail, to ensure high torque transmission in the 2nd, 3rd and 4th pump section as well.... .... as shortens the overall length of all WP1500 multiple pumps. Cross section of W1500 plus W900 pump assembly Common suction port for two or three pump sections is available on request. Key design detail, to ensure high torque transmission in the 2nd, 3rd and 4th pump section as well.... .... as shortens the overall length of all WP1500 multiple pumps. 9 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
PERFORMANCE CURVES EXPLANATION Meassuring conditions is t= 42°C (32cSt) Oil > ISO VG32 RENOLIN B10 25 bar 125 bar 200 bar 10 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
PERFORMANCE CURVES 11 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Cast Iron Pumps Heavy Duty GC Series Pumps Displacements 1.06 to 11.65 cc GC Series High/Low Pumps High Pressure Displacements 1.06 to 4.22 cc Low Pressure Displacements 4.22 to 12.71 cc Maximum Pressure 276 bar Maximum Speed 4,000 rpm W-Series Pumps W100 Displacements 0.50 to 2.00 cc W300 Displacements 0.80 to 5.70 cc W600 Displacements 4 to 12 cc W900 Displacements 5 to 31 cc W1200 Displacements 25 to 33 cc W1500 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 500 to 4,000 rpm D Series Pumps Displacements 03.80 to 22.85 cc D Series High/Low Pumps High Pressure Displacements 7.62 cc Low Pressure Displacements 15.24 to 22.86 cc Maximum Pressure 207–276 bar Maximum Speed 3,600–4,000 rpm WK900 CALMA Pumps Displacements 5 to 27 cc Maximum Pressure 230 bar Maximum Speed 4,000 rpm F12 & F15 Ferra Series Pumps F12 Displacements 16 – 41 cc F15 Displacements 19 to 50 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm Cast Iron Displacements 1.06 to 161 cc Speed Up to 10,000 rpm Aluminum Displacements 4 to 50 cc Speed Up to 4,000 rpm Flow Dividers Fluid Motors GC & D Series GC Displacements 1.58 to 8.47 cc D Displacements 3.8 to 13.32 cc Maximum Pressure 310 bar Maximum Input Flow Per Section 14 gpm (53 lpm) Aluminum Pumps Medium/Light Duty F20/F30 Pumps & F20-LS/F30-LS Load Sense Ferra Series Pumps Displacements 23 to 161 cc Maximum Pressure 276 bar Maximum Speed 3,600 rpm PUMPS & MOTORS
PUMP/MOTORS (DC/AC) DC Voltage Range 12 to 72 VDC AC Horsepower Range 0.367749 to 2.2065 kW Pump Displacements 0.65 to 28 cc Maximum Pressure 4276 bar HE “BOX” POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs HB800 POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.60 to 1.5 cc Reservoirs 0.5 to 3.8 litres plastic Maximum Pressure 180 bar BIROTATIONAL POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 2.11 cc Reservoirs 1.9 to 2.8 litres plastic, 3.8 to 7.6 litres steel HE1000 SERIES POWER PACKS Voltage Range 12 to 24 VDC Pump Displacements 0.24 to 2 cc Maximum Pressure 230 bar Reservoirs 0.5 to 3.8 litresplastic AC POWER PACKS GC-9500 SERIES Displacements 1.06 to 22.85 cc Maximum Pressure 207 bar Maximum Speed 3,600 rpm Reservoirs 19 to 76 litres steel HE2000 SERIES POWER PACKS Voltage Range 12 to 24 VDC, 115 to 230 VAC Pump Displacements 0.80 to 6.36 cc Maximum Pressure 230 bar Reservoirs 0.9 to 15 litres steel, 0.76 to 1.6 litresplastic 32.84 to 19 litres steel HE-Q (QUIET) POWER PACKS Voltage Range 24 VDC WQ300 Pump Displacements 1.2 to 5.7 cc Noise 42dB(A) Only Concentric offers this extensive range of products worldwide. POWER PACKS
