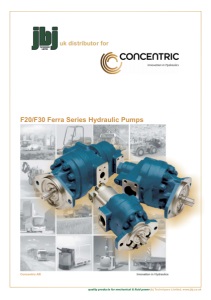

uk distributor for quality products for mechanical & fluid power jbj Techniques Limited, www.jbj.co.uk Innovation in Hydraulics Concentric AB F20/F30 Ferra Series Hydraulic Pumps
Concentric AB-F20/F30 PMP-2011-06 2 Reliable, efficient, serviceable design Concentric external spur gear, positive displacement pumps are offered in single, double, triple and thru-drive versions. Single and thru-drive pumps are of a three-section modular design. Front and rear covers are cast iron for reliability, strength, and sound reduction. A cast iron center section allows gear tips to generate their own run-in paths, creating minimum radial gear-tip clearance for high volumetric efficiency. The thru-drive pump is a single pump with a mounting pad and coupling spline in its rear cover, allowing a second pump to be mounted and driven in tandem. The double pump consists of two single pumps, each having its own outlet port but sharing a common inlet port and input shaft. This compact unit can, therefore, serve two separate hydraulic circuits, or supply greater volume to a single circuit through the combined delivery of both pumps. Besides offering greater design flexibility to hydraulic system designers, thru-drive and double pumps reduce installation costs since they allow multiple pump operation from a single mounting and drive point. Also, double pumps require only one inlet line, compared to the two required when separate pumps are used. Convenient, economical porting arrangements A large selection of port sizes and positions allows greater system design flexibility, provides the means for reducing costs through simplified plumbing arrangements, and facilitates the interchangeability of Concentric and competitive pumps. SAE 4-bolt split flange ports and SAE straight thread ports are standard. Choice of shafts, rotation and couplings Splined SAE side-fit drive shafts are standard. Other popular shafts are available. Pumps are assembled for either clockwise or counterclockwise rotation. Thru-drive pumps are provided with output drive couplings that mate with splined SAE side-fit drive shafts. Meets many mounting requirements SAE standard wet flange mountings and single or double shaft seals are available on all pumps. Mounting pads meet SAE standards and are available in several sizes and types to satisfy various mounting requirements and to facilitate interchangeability of Vickers and competitive units. Double shaft seals are ideal for applications where the pump pilot and shaft extend into a transmission case or crankcase. If either seal fails, the pump fluid remains separated from the transmission or crankcase fluid. Leakage past either seals drains to the exterior of the pump. The double seal feature thus reduces system downtime by preventing the mixing of different fluids and providing for visual detection of seal malfunction. The inlet of the thru-drive pump is open to the pump’s rear coupling area, requiring that mating pumps have a wet-flange mounting. If the rear mounting pad is capped instead of used to mount a pump, it must be sealed to prevent fluid leakage and entrance of air. Heavy duty construction The drive gear and drive shaft are one piece construction, as are the driven gear and shaft, to eliminate the potential problems of fretting and stress fatigue associated with two-piece construction. The one-piece design also allows the use of large diameter journals and bearings for greater loadcarrying capacity. Gears are of AISI 8620 alloy steel for greater shaft strength and a stronger gear assembly. Gears have ten teeth to minimize pressure ripple, and gear sides and shaft journals are carburized, hardened, and ground to a fine finish. The pumps large teflon impregnated bronze bearings are installed in precision bored covers for optimum shaft alignment. They provide a large support area that keeps bearing pressures low enough to handle most indirect drives. For applications imposing very high side loads, consult your Concentric representative. NOTE: This catalog features our most standard single, double and triple pump capabilities. Other pump options and multiple pump combinations are available. Please contact factory or your Concentric representative for information. See bottom of page 45 for contact information. DESCRIPTION, FEATURES AND BENEFITS Pictures on front cover are used with the kind permission of eg: Atlet, BT, Huddig, Scania, Toro and Volvo Construction Equipment. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 3 LONG-LIFE BEARING SYSTEM F20 Pump Molded sealing gland made of rubber or Viton*. Glass-filled nylon retainer prevents extrusion of sealing gland, has high temperature stability. Flat side faces steel side of wear plate. * Registered trademark of DuPont Co. High pressure metering notches reduce pulsations, quiet pump and system. Groove provides forced-feed bearing lubrication. Bearing surface faces gears, resists seizures. Decompression notches reduce pressure spikes, quiet system. Minimum leakage and wear Concentric pumps utilize two seal packs and two wear plates to minimize leakage across the end faces of the gears and to reduce wear. During startup, the seal packs mechanically preload and seal a cantilever section of the plates against the ends of the gears. The seal packs also establish the wear plate area exposed to system pressure, allowing axial pressure loading and balancing of the cantilever sections. As pressure increases, the sections deflect toward the gear faces to reduce clear ances and balance opposing axial forces. Running clearances are maintained small enough for mimimum leakage across the faces, yet large enough to maintain the oil film required to minimize wear of mating surfaces. Radial imbalance (hydraulic load). Fixed end (minimum deflection). Shaft deflection (exaggerated). Fixed end (minimum deflection). Tapered cross section. Pressure port. Adjustment for deflection Bearings and support structures move in unison with, and adjust to, shafts that are deflected by high hydraulic loads. Optimum bearing alignment, under load, maintains the large-area bearing support required for minimum wear and maximum life of bearings and pump. Inlet port quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 4 Cover-end pump Double pump model series PERFORMANCE SPECIFICATIONS FOR F20/F30 PUMPS Single and thru-drive pumps Model series F20 and FT20 F30 and FT30 Pump size 7 9 11 13 15 17 19 21 24 27 18 21 25 28 30 32 35 40 45 50 cc 23 29 36 43 48 55 62 68 77 87 58 68 80 91 97 104 113 129 145 161 cu. in. 1.41 1.79 2.18 2.60 2.94 3.33 3.77 4.13 4.71 5.30 3.54 4.13 4.91 5.51 5.89 6.30 6.88 7.86 8.84 9.82 bar 276 276 276 276 276 250 228 207 190 170 276 276 276 276 276 250 250 228 190 170 psi 4000 4000 4000 4000 4000 3625 3300 3000 2700 2375 4000 4000 4000 4000 4000 3625 3400 2900 2550 2300 rpm 3600 3400 3200 3000 2800 2500 2500 2500 2500 2300 3000 3000 3000 2750 2500 2500 2500 2400 2300 2200 rpm* 1000 800 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 l/min 75.7 90.8 105.9 117.3 124.9 128.7 147.6 162.7 185.4 193.0 166.5 193.0 230.9 214.0 230.9 245.0 272.5 299.0 325.5 344.4 gpm 20 24 28 31 33 34 39 43 49 51 44 51 61 57 61 65 72 79 86 91 kW 37 44 51 57 60 62 57 57 53 49 77 90 107 95 98 99 95 104 92 87 hp 50 59 68 76 80 83 76 76 71 66 104 121 144 128 131 133 127 139 123 116 Theoretical displacement per revolution Rated pressure Rated speed @ rated pressure & .17 bar (5” Hg) vacuum inlet Minimum speed @ rated pressure Typical delivery @ rated speed & pressure Typical input power @ rated speed & pressure F2020 F3020 F3030 Same as for F20 and FT20 above. Same as for F30 and FT30 above. Shaft-end pump Pump sizes and ratings † * Lower speeds are permissable when operating below rated pressure. Same as for F20 and FT20 above. Same as for F30 and FT30 above. † Rated speed of double pump is governed by pump with lower speed rating. If deliveries of both pumps are combined, rated pressure is governed by pump with lower pressure rating. Efficiency Depending on displacement, speed and pressure, volumetric efficiency is 81-98% and overall efficiency is 71-92% with SAE 10W oil at 49°C (120°F). Inlet conditions Pressure on the inlet should not exceed 1 bar (15 psi). Under continuous operation, inlet vacuum should not exceed 0.17 bar (5”Hg). Operating temperature Under continuous operation, a maximum of 96°C (205°F) is recommended. The maximum temperature for cyclic or intermittent operation is 107°C (225°F). Fluids and filtration For applications requiring fire resistant fluids, water glycols, water in-oil emulsions and synthetics may be used at slightly reduced ratings. Fluid should be selected with an operating viscosity similar to the petroleum oil described above. For application assistance, consult your Concentric representative. The system should be filtered to provide an ISO code (proposed) cleanliness level of 19/16. A 10-micron filter sized to accommodate full system return line flow, is recommended for most operating environments. Severe conditions may require greater efficiency from the filter. quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
5 TABLE OF CONTENTS Description, Features and Benefits ................................................................................. 2 & 3 Specifications and Application Data ...................................................................................... 4 Installation Dimensions / Model Codes F20 ....................................................................................................................................................................6 - 7 F30 ....................................................................................................................................................................8 - 9 FT20 .............................................................................................................................................................10 - 11 FT30 .............................................................................................................................................................12 - 13 F2009...........................................................................................................................................................14 - 15 F2020...........................................................................................................................................................16 - 17 F3020...........................................................................................................................................................18 - 19 F3030...........................................................................................................................................................20 - 21 F202020......................................................................................................................................................22 - 23 F303030......................................................................................................................................................24 - 25 F200909......................................................................................................................................................26 - 27 F202009......................................................................................................................................................28 - 29 F302020......................................................................................................................................................30 - 31 F303020......................................................................................................................................................32 - 33 FT2020 ........................................................................................................................................................34 - 35 FT3030 ........................................................................................................................................................36 - 37 Mounting Flanges .......................................................................................................................38 Drive Shafts ....................................................................................................................................39 Rear Mounting Flanges for Thru-Drive Pumps .................................................................40 Rear Couplings for Thru-Drive Pumps .................................................................................41 Performance Curves ...................................................................................................................42 Concentric Product Offering ...................................................................................................43 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 6 F20 5.30 4.71 4.13 3.77 3.33 2.94 2.60 2.18 1.79 1.41 CIR 27 24 21 19 17 15 13 11 9 7 DISPLACEMENT CODE Ø 4.000 3.998 [101.60] [101.55] -B6.30 [160.02] 6.89 [175.01] 2X Ø .56 [14.23] 5.75 [146.05] 2.88 [73.15] FRONT VIEW .37 [9.39] .50 [12.7] A B C SIDE VIEW 2X .88 [22.35] 3.03 [76.96] 3.21 [81.53] REAR VIEW All dimensions shown are for reference only. Consult factory for your specific configuration. 168.1 161.8 154.9 150.6 145.5 141.2 137.2 132.3 127.8 123.2 C (mm) 6.62 6.37 6.10 5.93 5.73 5.56 5.40 5.21 5.03 4.85C (in.) 162.6 156.2 149.4 145.0 140.0 135.6 131.6 126.7 122.2 117.6 B (mm) 6.40 6.15 5.88 5.71 5.51 5.34 5.18 4.99 4.81 4.63B (in.) 201.9 195.6 188.7 184.4 179.3 175.0 170.9 166.1 161.5 157.0 A (mm) 7.95 7.70 7.43 7.26 7.06 6.89 6.73 6.54 6.36 6.18 A (in.) 87 77 68 62 55 48 43 36 29 23 CC quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 7 Model Code for F20 Series Single Pumps EXAMPLE: (F3)- F20- W- 2 - D- 15- B - 1- A -12- A- 10 - L Special Seals Series Mount Type Front Cover Inlet Port Displacements Outlet Port Rear Cover Shaft Seal Drive Shaft Port Locations Design Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F20 F20 Series Single Gear Pump 3 (Mount Type) Order Code Description D Dry Mounting Flange (shorter length, single shaft seal) W Wet Mounting Flange (pilot diameter sealing and provides for optional double shaft seal) S Single Shaft Seal Short Mount 4 (Front Cover) Order Code Description 1 SAE “A” 2-Bolt Mount (G20W only) 2 SAE “B” 2-Bolt Flange 6 SAE “B” 2/4-Bolt Combination Mount (G20W only) 8 SAE “C” 2/4-Bolt Mount 31 SAE “A” 2-Bolt Mount w/Outboard Ball Bearing 32 SAE “B” 2-Bolt Mount w/Outboard Ball Bearing 5 (Inlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange C 1.25”, SAE 4-Bolt Split Flange CM 1.25”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) V #16 SAE (1 5/16” - 12) Straight Thread W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 7 (Outlet Port) Order Code Description A .750”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) S #10 SAE (.875” - 14) Straight Thread T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Cover) Order Code Description 1 Standard Single Pump Rear Cover (no options) 9 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 10 (Drive Shaft) Order Code Description 1 SAE “B” Straight Keyed, .875” Diameter, 1.312” Ext. 3 Straight Keyed with Thread (.625” - 18 UNC) 5 Tapered Threaded (1.50” taper per foot) 7 Tapered Keyed/Threaded (.625” - 18 UNC, 1.50” taper per foot) 12 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 17 SAE “A” 9-Tooth Spline, Flat Root-Side Fit 21 SAE “BB” Straight Keyed, 1.00” diameter, 1.50” ext. 99 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 11 (Port Locations) Order Code Description A Side Inlet / Side Outlet B Side Inlet / Rear Outlet C Rear Inlet / Side Outlet D Rear Inlet / Rear Outlet 12 (Design Designation) Order Code Description 10 Standard 13 (Rotation) Order Code Description Omit Clockwise Rotation L Counterclockwise Rotation quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 8 F30 161 145 129 113 103 97 90 81 68 58 CC 50 45 40 35 32 30 28 25 21 18 DISPLACEMENT CODE 9.56 9.25 8.94 8.63 8.45 8.33 8.21 8.02 7.77 7.58 A (in.) 9.82 8.84 7.86 6.88 6.30 5.89 5.51 4.91 4.13 3.54 CIR 7.94 7.63 7.32 7.01 6.83 6.71 6.59 6.40 6.15 5.96B (in.) 242.8 235.0 227.1 219.2 214.6 211.6 208.5 203.7 197.4 192.5 A (mm) 201.7 193.8 185.9 178.1 173.5 170.4 167.4 162.6 156.2 151.4 B (mm) 5.000 4.998 [127.0] [126.95] Ø -B3.63 [92.20] 3.43 [87.12] 2X 1.05 [26.67] All dimensions shown are for reference only. Consult factory for your specific configuration. 7.64 [194.06] 7.12 [180.85] 8.37 [212.60] 3.56 [90.42] 2X .69 [17.53] FRONT VIEW .49 [12.45] .50 [12.7] A 2X B SIDE VIEW REAR VIEW quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 9 ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F30 F30 Series Single Gear Pump 3 (Mount Type) Order Code Description C Standard Designation 4 (Front Cover) Order Code Description 4 SAE “C” 4-Bolt Mount 6 SAE “B” 2/4-Bolt Combination Mount 7 SAE “C” 2-Bolt Mount 8 SAE “C” 2/4-Bolt Combination Mount 5 (Inlet Port) Order Code Description D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) E 2.00”, SAE 4-Bolt Split Flange EM 2.00”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Y #30 SAE (2 1/2” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 18- 58 cc/3.54 in. 3 32- 104 cc/6.30 in. 3 21- 68 cc/4.13 in. 3 35- 113 cc/6.88 in. 3 25- 80 cc/4.91 in. 3 40- 129 cc/7.86 in. 3 28- 91 cc/5.51 in. 3 45- 145 cc/8.84 in. 3 30- 97 cc/5.89 in. 3 50- 161 cc/9.82 in. 3 7 (Outlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Y #30 SAE (2 1/2” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Cover) Order Code Description 2 Standard Single Pump Rear Cover (no options) 9 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None Model Code for F30 Series Single Pumps 10 (Drive Shaft) Order Code Description 1 SAE “C” Straight Keyed, 1.250” Diameter, 1.875” Ext. 5 Tapered Threaded (1.50” taper per foot) 12 SAE “C” 14-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 11 (Port Positions) Order Code Description A Side Inlet / Side Outlet B Side Inlet / Rear Outlet C Rear Inlet / Side Outlet D Rear Inlet / Rear Outlet 12 (Design Designation) Order Code Description 10 Standard 13 (Rotation) Order Code Description L Counterclockwise Rotation R Clockwise Rotation EXAMPLE: (F3)- F30- C- 4 - E- 30- C - 2- A -12- A- 10 - L Special Seals Series Mount Type Front Cover Inlet Port Displacements Outlet Port Rear Cover Shaft Seal Drive Shaft Port Positions Design Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 10 FT20 87 77 68 62 55 48 43 36 29 23 CC 245.9 239.0 232.2 227.8 223.0 218.4 214.4 209.6 205.0 200.7 A (mm) 5.30 4.71 4.13 3.77 3.33 2.94 2.60 2.18 1.79 1.41 CIR 9.689. 419.1 48.97 8.788. 608.4 48.25 8.077. 90 A (in.) 6.42 6.15 5.88 5.71 5.51 5.34 5.18 4.99 4.81 4.63 B (in.) 163.1 156.2 149.4 145.0 140.0 135.6 131.6 126.7 122.2 117.6 B (mm) 6.646. 376.1 05.93 5.735 .565. 405.2 15.03 4.85C (in.) 168.7 161.8 154.9 150.6 145.5 141.2 137.2 132.3 127.8 123.2 C (mm) 6X Ø .4375 1.25 [11.11] [31.75] Ø -B4.000 3.998 [101.6] [101.55] Ø 4.003 4.000 [101.68] [101.6] __ _>_ .54 [13.72] 2X 1.768 [44.91] 2X 3.536 [89.81] 2X 1.768 [44.91] 2X 1.768 [44.91] 2.875 [73.03] __ _>_ 1/2-13 UNC-2B 1.00 [25.4] __ _>_ Ø 4.225 4.215 [107.32] [107.06] __ _>_ .085 .081 [2.16] [2.06] 3.00 [76.2] 2X Ø .562 [14.27] 6.29 [159.77] 2X 3.44 [87.38] 2.875 [73.03] ROTATION CW 2.875 [73.03] 2.84 [72.14] 2X 3.44 [87.38] 2.875 [73.03] 3.92 [99.57] 2.59 [65.79] All dimensions shown are for reference only. Consult factory for your specific configuration. FRONT VIEW .37 [9.40] .50 [12.7] .05 X 45° [1.27] A B C SIDE VIEW REAR VIEW 27 24 21 19 17 15 13 11 9 7 DISPLACEMENT CODE quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 11 Model Code for FT20 Series Thru Drive Pumps EXAMPLE: (F3)- FT20- W- 2 - D- 9- B - 1- A -12- A- 10 - L Special Seals Series Mount Type Front Cover Inlet Port Displacements Outlet Port Rear Mounting Pad Shaft Seal Drive Shaft Rear Coupling Design Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description FT20 FT20 Thru Drive Series Single Gear Pump 3 (Mount Type) Order Code Description W Wet Mounting Flange (pilot diameter sealing and provides for optional double shaft seal) 4 (Front Cover) Order Code Description 1 SAE “A” 2-Bolt Mount 2 SAE “B” 2-Bolt Mount 4 SAE “C” 4-Bolt Mount (Contact Factory) 6 SAE “B” 2/4-Bolt Combination Mount (Wet Mount Only) 8 SAE “C” 2/4-Bolt Combination Mount 5 (Inlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange C 1.25”, SAE 4-Bolt Split Flange D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) V #16 SAE (1 5/16” - 12) Straight Thread W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 7 (Outlet Port) Order Code Description A .750”, SAE 4-Bolt Split Flange B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) S #10 SAE (.875” - 14) Straight Thread T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Mounting Pad) Order Code Description 1 SAE “A” 2-Bolt Rear Mounting Pad 6 SAE “B” 2/4-Bolt Rear Mounting Pad Note: A shorter length SAE “A” rear mounting pad option is available, contact factory for information. 9 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 10 (Drive Shaft) Order Code Description 1 SAE “B” Straight Keyed, .875” diameter, 1.312” ext. 12 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 21 SAE “BB” Straight Keyed, 1.00” diameter, 1.50” ext. 99 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 11 (Rear Coupling) Order Code Description A SAE “A” Coupling B SAE “B” Coupling BB SAE “BB” Coupling G SAE “A” Coupling 11-Tooth 16/32 DP, Flat Root-Side Fit X No Coupling 12 (Design Designation) Order Code Description 10 Standard 13 (Rotation) Order Code Description L Counterclockwise Rotation R Clockwise Rotation quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 12 FT30 161 145 129 113 103 97 90 81 68 58 CC 161 145 129 113 103 97 90 81 68 58 CC 50 45 40 35 32 30 28 25 21 18 DISPLACEMENT CODE 50 45 40 35 32 30 28 25 21 18 DISPLACEMENT CODE 2.094 [53.19] 2.094 [53.19] 7.61 [193.29] .49 [12.45] .50 [12.7] 5.000 4.998 [127.0] [126.95] Ø -B- .05 X 45° [1.27] 3.43 [87.12] A 2X 1.768 [44.91] 7.92 [201.17] 2.91 [73.91] 2.875 [73.03] ROTATION CW 2X Ø .687 [17.45] 7.124 [180.95] 3.562 [90.47] B C 4.18 [106.17] 3.25 [82.55] 2X 1.768 [44.91] 2.875 [73.03] 2X 1.768 [44.91] 2X 1.768 [44.91] 4.18 [106.17] All dimensions shown are for reference only. Consult factory for your specific configuration. FRONT VIEW SIDE VIEW REAR VIEW SAE “B” 2/4-BOLT REAR MOUNTING PAD ROTATION CW 2X Ø .687 [17.45] 7.124 [180.95] 3.562 [90.47] SIDE VIEW REAR VIEW FRONT VIEW SAE “A” 2-BOLT REAR MOUNTING PAD All dimensions shown are for reference only. Consult factory for your specific configuration. 11.54 11.23 10.92 10.62 10.43 10.31 10.19 10.00 9.75 9.56 A (in.) 7.95 7.64 7.33 7.02 6.84 6.71 6.59 6.40 6.15 5.97 B (in.) Ø 4.003 4.000 [102.36] [101.6] __ _>_ .54 [13.72] Ø 4.225 4.215 [107.32] [107.06] __ _>_ .085 .081 [2.16] [2.06] 6X Ø .500-13 UNC-2B [12.7] THREAD 1.06 [26.92] __ _>_ 9.82 8.84 7.86 6.88 6.30 5.89 5.51 4.91 4.13 3.54 CIR 293.1 285.2 277.4 269.7 264.9 261.9 258.8 254.0 247.7 242.8 A (mm) 201.9 194.1 186.2 178.3 173.7 170.4 167.4 162.6 156.2 151.6 B (mm) 215.4 207.5 199.6 191.8 187.2 183.9 180.8 176.0 169.7 165.1 C (mm) Ø 5.000 4.998 [127.0] [126.95] -B3.250 [82.55] 3.430 [87.12] 2X .375-16 UNC-2B [9.53] .700 MIN FULL THREAD [17.78] .05 X 45° [1.27] .49 [12.45] .50 [12.7] A B .085 .081 [2.16] [2.06] Ø 3.475 3.465 [88.27] [88.01] 9.48 9.17 8.86 8.55 8.37 8.24 8.12 7.93 7.69 7.50 A (in.) 7.94 7.63 7.33 7.02 6.84 6.71 6.59 6.40 6.15 5.97 B (in.) 9.82 8.84 7.86 6.88 6.30 5.89 5.51 4.91 4.13 3.54 CIR 240.8 232.9 225.0 217.2 212.6 209.3 206.2 201.4 195.3 190.5 A (mm) 201.7 193.8 186.2 178.3 173.7 170.4 167.4 162.6 156.2 151.6 B (mm) 8.48 8.17 7.86 7.55 7.37 7.24 7.12 6.93 6.68 6.50 C (in.) Ø 3.253 3.251 [82.63] [82.56] quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 13 Model Code for FT30 Series Thru Drive Pumps EXAMPLE: (F3)- FT30 - C- 4 - E- 30- C -6- A -12- B- 10 - L Special Seals Series Mount Type Front Cover Inlet Port Displacements Outlet Port Rear Mounting Pad Shaft Seal Drive Shaft Rear Coupling Design Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 10 (Drive Shaft) Order Code Description 1 SAE “C” Straight Keyed, 1.250” diameter, 1.875” ext. 12 SAE “C” 14-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 11 (Rear Coupling) Order Code Description A SAE “A” Coupling B SAE “B” Coupling BB SAE “BB” Coupling C SAE “C” Coupling X No Coupling 12 (Design Designation) Order Code Description 10 Standard 13 (Rotation) Order Code Description L Counterclockwise Rotation R Clockwise Rotation ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description FT30 FT30 Thru Drive Series Gear Pump 3 (Mount Type) Order Code Description C Standard Designation 4 (Front Cover) Order Code Description 4 SAE “C” 4-Bolt Mount 6 SAE “B” 2/4-Bolt Combination Mount 7 SAE “C” 2-Bolt Mount 8 SAE “C” 2/4-Bolt Combination Mount 5 (Inlet Port) Order Code Description D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) E 2.00”, SAE 4-Bolt Split Flange EM 2.00”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Y #30 SAE (2 1/2” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 18- 58 cc/3.54 in. 3 32- 104 cc/6.30 in. 3 21- 68 cc/4.13 in. 3 35- 113 cc/6.88 in. 3 25- 80 cc/4.91 in. 3 40- 129 cc/7.86 in. 3 28- 91 cc/5.51 in. 3 45- 145 cc/8.84 in. 3 30- 97 cc/5.89 in. 3 50- 161 cc/9.82 in. 3 7 (Outlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.25”, SAE 4-Bolt Split Flange CM 1.25”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Mounting Pad) Order Code Description 1 SAE “A” 2-Bolt Rear Mounting Pad 6 SAE “B” 2/4-Bolt Combination Rear Mounting Pad 8 SAE “C” 2/4-Bolt Combination Rear Mounting Pad 9 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 14 W900 SECTIONS F20 SECTIONS F2009 28 27 23 19 16 14 11 10 8 6 DISPLACEMENT CODE 27 24 21 19 17 15 13 11 9 7 DISPLACEMENT CODE .50 [12.7] .37 [9.40] E 2.84 [72.14] A C B D 3.00 [76.2] 1.71 [43.43] 1.71 [43.43] F All dimensions shown are for reference only. Consult factory for your specific configuration. FRONT VIEW SIDE VIEW REAR VIEW 2.52 2.49 2.38 2.26 2.17 2.12 2.03 2.00 1.94 1.86 E (in.) 2.73 2.70 2.58 2.47 2.38 2.32 2.23 2.20 2.15 2.09 C (in.) 2.72 2.69 2.57 2.46 2.37 2.31 2.22 2.19 2.14 2.08 D (in.) 3.30 3.24 3.01 2.78 2.60 2.49 2.31 2.25 2.14 2.02 F (in.) 162.8 156.0 149.1 145.0 140.0 135.4 131.3 126.5 121.9 117.6 A (mm) 6.41 6.14 5.87 5.71 5.51 5.33 5.17 4.98 4.80 4.63 A (in.) 163.3 156.5 149.6 145.5 140.5 135.9 131.8 127.0 122.4 118.1 B (mm) Ø 4.000 3.998 [101.6] [101.55] -BROTATION CCW 5.750 [146.05] 2X Ø .562 [14.27] 6.23 [158.24] 2.875 [73.03] 6.43 6.16 5.89 5.73 5.53 5.35 5.19 5.00 4.82 4.65 B (in.) 5.30 4.71 4.13 3.77 3.33 2.94 2.60 2.18 1.79 1.41 CIR 87 77 68 62 55 48 43 36 29 23 CC 1.709 1.647 1.403 1.159 .976 .854 .671 .610 .488 .366 CIR 28 27 23 19 16 14 11 10 8 6 CC 69.3 68.6 65.5 62.7 60.5 58.9 56.6 55.9 54.6 53.1 C (mm) 69.1 68.3 65.3 62.5 60.2 58.7 56.4 55.6 54.4 52.8 D (mm) 64.0 63.2 60.5 57.4 55.1 53.8 51.6 50.8 49.3 47.2 E (mm) 83.8 82.3 76.5 70.6 66.0 63.2 58.7 57.2 54.4 51.3 F (mm) quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 15 ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F2009 F2009 Series Double Gear Pump 3 (Mount Type) Order Code Description D Dry Mounting Flange (shorter length, single shaft seal) W Wet Mounting Flange (pilot diameter sealing and provides for optional double shaft seal) 4 (Front Cover) Order Code Description 2 SAE “B” 2-Bolt Mount 4 SAE “C” 4-Bolt Mount (contact factory) 6 SAE “B” 2/4-Bolt Combination Mount (wet mount only) 8 SAE “C” 2/4-Bolt Mount (contact factory) 5 (Front Section Inlet Port) Order Code Description C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) E 2.0”, SAE 4-Bolt Split Flange EM 2.0”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) V #16 SAE (1 5/16” - 12) Straight Thread W #20 SAE (1 5/8” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements, Front Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 7 (Front Section Outlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread NOTE: Metric ports available, contact factory. Contact factory for other requirements. 8 (Displacements, Rear Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 6- 6 cc/.366 in. 3 16- 16 cc/.976 in. 3 8- 8 cc/.488 in. 3 19- 19 cc/1.159 in. 3 10- 10 cc/.610 in. 3 23- 23 cc/1.403 in. 3 11- 11 cc/.671 in. 3 27- 27 cc/1.647 in. 3 14- 14 cc/.854 in. 3 28- 28 cc/1.709 in. 3 9 (Rear Section Inlet Port) Order Code Description X No Rear Inlet Port (single inlet for double pump) Rear Inlet Port Options (dual inlet for double pump): S 6 cc, #10 SAE (7/8” - 14) Straight Thread T 8 cc, #12 SAE (1 1/16” - 12) Straight Thread V 19 cc - 28 cc, #16 SAE (1 5/16” - 12) Straight Thread A 16 cc - 19 cc, .750”, SAE 4-Bolt Split Flange B 23 cc - 28 cc, 1.00”, SAE 4-Bolt Split Flange NOTES: Split flange ports are not available for 6cc - 14 cc sizes. Metric ports available, contact factory. Model Code for F2009 Series Double Pumps EXAMPLE: (F3)- F2009- W- 2 - W-13- T - 23- X- A - X- 12- E- C - 10 - L Special Seals Series Mount Type Front Cover Front Inlet Port Displacements Front Outlet Port Displacements Rear Inlet Port Rear Outlet Port Drive Shaft Valve Options Relief Valve Setting 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Design Rotation Shaft Seal 10 (Rear Section Outlet Porting) Order Code Description Q 6 cc, #8 SAE (3/4” - 16) Straight Thread S 8 cc - 16 cc, #10 SAE (7/8” - 14) Straight Thread T 19 cc - 28 cc, #12 SAE (1 1/16” - 12) Straight Thread Y 16 cc - 19 cc, .500”, SAE 4-Bolt Split Flange A 23 cc - 28 cc, .750”, SAE 4-Bolt Split Flange NOTES: Split flange ports are not available for 6cc - 14 cc sizes. Metric ports available, contact factory. 11 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 12 (Drive Shaft) Order Code Description 1 SAE “B” Straight Keyed, .875” Diameter, 1.312” Ext. 12 SAE “B” 13-Tooth Spline, Flat Root-Side Fit 21 SAE “BB” Straight Keyed, 1.00” Diameter, 1.50” Ext. 99 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 13 (Valve Options) ** Order Code Description A Tuneable Priority Flow Control Valve, Secondary Flow Loadable B Tuneable Priority Flow Control Valve, Secondary Bypass to Pump Inlet C Tuneable Priority Flow Control Valve w/Relief Valve on Priority Flow Only, Secondary Flow Loadable (> 4 GPM) CC Tuneable Priority Flow Control Valve w/Relief Valve on Priority Flow Only, Secondary Flow Loadable (< 4 GPM) D Load Sense Priority Flow Control, Priority Flow Relief Bypass to Pump Inlet E Pilot-Operated Relief Valve, Bypass to Tank External X No Valve Option ** Contact factory for availability and minimum quantity requirements for above valve options. 14 (Relief Valve Setting) Order Code Description Order Code Description A 69 BAR (1000 PSI) G 190 BAR (2750 PSI) B 103 BAR (1500 PSI) H 207 BAR (3000 PSI) C 121 BAR (1750 PSI) I 224 BAR (3250 PSI) D 138 BAR (2000 PSI) J 241 BAR (3500 PSI) E 155 BAR (2250 PSI) K 250 BAR (3750 PSI) F 172 BAR (2500 PSI) L 275 BAR (4000 PSI) 15 (Design Designation) Order Code Description 10 Standard 16 (Rotation) Order Code Description Omit Clockwise Rotation L Counterclockwise Rotation quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 16 F2020 87 77 68 62 55 48 43 36 29 23 CC 27 24 21 19 17 15 13 11 9 7 DISPLACEMENT CODE .50 [12.7] B D ROTATION CW 2X Ø .562 [14.27] 6.88 [174.75] 5.750 [146.05] 2.875 [73.03] A C .37 [9.40] All dimensions shown are for reference only. Consult factory for your specific configuration. FRONT VIEW SIDE VIEW REAR VIEW 179.6 172.7 165.9 161.5 156.5 152.1 148.1 143.3 138.7 134.1 B (mm) 166.1 159.3 152.4 148.1 143.0 138.7 134.6 129.8 125.2 123.2 A (mm) 7.076 .806. 536.3 66.16 5.995 .835. 645.4 65.2 8B (in.) 6.54 6.27 6.00 5.83 5.63 5.46 5.30 5.11 4.93 4.85 A (in.) 5.90 5.68 5.36 5.21 5.01 4.82 4.67 4.47 4.30 4.03 C (in.) Ø 4.000 3.998 [101.6] [101.55] -BOUT 2.84 [72.14] 3.20 [81.28] 6.40 [162.56] 6.74 6.47 6.20 6.05 5.85 5.66 5.51 5.31 5.14 5.02 D (in.) 5.30 4.71 4.13 3.77 3.33 2.94 2.60 2.18 1.79 1.41 CIR 149.9 144.3 136.1 132.3 127.3 122.4 118.6 113.5 109.2 102.4 C (mm) 171.2 164.3 157.5 153.7 148.6 143.8 140.0 134.9 130.6 127.5 D (mm) quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 17 Model Code for F2020 Series Double Pumps EXAMPLE: (F3)- F2020- W- 6 - E- 15- B - + - 11-B- 12- A- 10 - L Special Seals Series Mount Front Cover Inlet Port Displacements Front Section Outlet Displacements Rear Section Outlet Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Rear Section Inlet ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F2020 F2020 Series Double Gear Pump 3 (Mount) Order Code Description W Wet Mount Flange (pilot diameter sealing and provides for optional double shaft seal) 4 (Front Cover) Order Code Description 2 SAE “B” 2-Bolt Mount 3 SAE “B” 4-Bolt Mount (Contact Factory) 6 SAE “B” 2/4-Bolt Combination Mount (wet mount only) 8 SAE “C” 2/4-Bolt Mount 5 (Inlet Port) Order Code Description D 1.50”, SAE 4-Bolt Split Flange DM 1.50”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) E 2.00”, SAE 4-Bolt Split Flange EM 2.00”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) F 2.50”, SAE 4-Bolt Split Flange FM 2.50”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) Contact factory for other requirements. 6 (Displacements, Front Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 SAE Rated Flow, GPM @ 1200 RPM, 100 PSI 7 (Front Section Outlet) Order Code Description A .750”, SAE 4-Bolt Split Flange AM .750”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) S #10 SAE (.875” - 12) Straight Thread T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Section Inlet) (Contact factory) Order Code Description + None 9 (Displacements, Rear Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 SAE Rated Flow, GPM @ 1200 RPM, 100 PSI 10 (Rear Section Outlet) Order Code Description A .750”, SAE 4-Bolt Split Flange AM .750”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) S #10 SAE (.875” - 12) Straight Thread T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 11 (Drive Shaft) Order Code Description 1 SAE “B” Straight Keyed, .875” Diameter, 1.312” Ext. 12 SAE “B” 14-Tooth Spline, Flat Root-Side Fit 21 SAE “BB” Straight Keyed, 1.00” Diameter, 1.50” Ext. 99 SAE “BB” 15-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 12 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 13 (Design Designation) Order Code Description 10 Standard 14 (Rotation) Order Code Description R Clockwise Rotation L Counterclockwise Rotation quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 18 F20 SECTIONS 87 77 68 62 55 48 43 36 29 23 CC F30 SECTIONS F3020 161 145 129 113 103 97 90 81 68 58 CC 27 24 21 19 17 15 13 11 9 7 DISPLACEMENT CODE 50 45 40 35 32 30 28 25 21 18 DISPLACEMENT CODE 182.6 175.8 168.9 145.0 159.8 155.2 151.4 146.3 142.0 137.4 D (mm) 5.30 4.71 4.13 3.77 3.33 2.94 2.60 2.18 1.79 1.41 CIR 5.71 5.44 5.17 5.01 4.81 4.63 4.47 4.28 4.10 3.93 C (in.) 7.19 6.92 6.65 5.71 6.29 6.11 5.96 5.76 5.59 5.41 D (in.) 8.60 8.29 7.80 7.61 7.49 7.36 7.24 7.05 6.81 6.62 A (in.) 7.36 8.17 7.86 7.52 7.37 7.24 7.12 6.93 6.68 6.50 B (in.) ROTATION CW 2X Ø .687 [17.45] 7.124 [180.95] 3.562 [90.47] 7.62 [193.55] 3.25 [82.55] 3.43 [87.12] 2.84 [72.14] 9.82 8.84 7.86 6.88 6.30 5.89 5.51 4.91 4.13 3.54 CIR 218.4 210.6 198.1 193.3 190.2 186.9 183.9 179.1 173.0 168.1 A (mm) 186.9 207.5 199.6 191.0 187.2 183.9 180.8 176.0 169.7 165.1 B (mm) 145.0 138.2 131.3 127.3 122.2 117.6 113.5 108.7 104.1 99.8 C (mm) All dimensions shown are for reference only. Consult factory for your specific configuration. .50 [12.7] .49 [12.45] A C D B Ø 5.000 4.998 [127.0] [126.95] -BFRONT VIEW SIDE VIEW REAR VIEW quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 19 Model Code for F3020 Series Double Pumps EXAMPLE: (F3)- F3020- W- 7 - E- 18- B - + - 11- B - 12- A- 10 - L Special Seals Series Mount Front Cover Inlet Port Displacements Front Section Outlet Displacements Rear Section Outlet Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Rear Inlet Port 10 (Rear Section Outlet) Order Code Description A .750”, SAE 4-Bolt Split Flange AM .750”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) S #10 SAE (.875” - 12) Straight Thread T #12 SAE (1 1/16” - 12) Straight Thread V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 11 (Drive Shaft) Order Code Description 1 SAE “C” Straight Keyed, 1.250” Diameter, 1.875” Ext. 12 SAE “C” 14-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 12 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 13 (Design Designation) Order Code Description 10 Standard 14 (Rotation) Order Code Description R Clockwise Rotation L Counterclockwise Rotation ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F3020 F3020 Series Double Gear Pump 3 (Mount) Order Code Description W Wet Mount Flange (pilot diameter sealing and provides for optional double shaft seal) 4 (Front Cover) Order Code Description 4 SAE “C” 4-Bolt Mount (contact factory) 7 SAE “C” 2-Bolt Mount (contact factory) 8 SAE “C” 2/4-Bolt Combination Mount 5 (Inlet Port) Order Code Description E 2.00”, SAE 4-Bolt Split Flange EM 2.00”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) F 2.50”, SAE 4-Bolt Split Flange FM 2.50”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) G 3.00”, SAE 4-Bolt Split Flange GM 3.00”, 4-Bolt Metric Split Flange (M16 x 2.0” threads) Y #30 SAE (2 1/2” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements, Front Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 18- 58 cc/3.54 in. 3 32- 104 cc/6.30 in. 3 21- 68 cc/4.13 in. 3 35- 113 cc/6.88 in. 3 25- 80 cc/4.91 in. 3 40- 129 cc/7.86 in. 3 28- 91 cc/5.51 in. 3 45- 145 cc/8.84 in. 3 30- 97 cc/5.89 in. 3 50- 161 cc/9.82 in. 3 7 (Front Section Outlet) Order Code Description B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 2.00”, SAE 4-Bolt Split Flange DM 2.00”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) V #16 SAE (1 5/16” - 12) Straight Thread W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Inlet Port) (Contact Factory) Order Code Description + None 9 (Displacements, Rear Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 7- 23 cc/1.41 in. 3 17- 55 cc/3.33 in. 3 9- 29 cc/1.79 in. 3 19- 62 cc/3.77 in. 3 11- 36 cc/2.18 in. 3 21- 68 cc/4.13 in. 3 13- 43 cc/2.60 in. 3 24- 77 cc/4.71 in. 3 15- 48 cc/2.94 in. 3 27- 87 cc/5.30 in. 3 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 20 F3030 161 145 129 113 103 97 90 81 68 58 CC 50 45 40 35 32 30 28 25 21 18 DISPLACEMENT CODE 8.488 .167. 867.5 57.37 7.247 .126. 936.6 86.5 0B (in.) 7.94 7.63 7.33 7.02 6.84 6.71 6.59 6.40 6.15 5.96 A (in.) 7.19 6.89 6.57 6.26 6.08 5.95 5.83 5.64 5.40 5.22 C (in.) ROTATION CW 2X Ø .687 [17.45] 7.124 [180.95] 3.562 [90.47] Ø 5.000 4.998 [127.0] [126.95] -BOUT 3.43 [87.12] 3.25 [82.55] 7.62 [193.55] 8.07 7.77 7.46 7.15 6.97 6.84 6.72 6.53 6.29 6.10 D (in.) 9.82 8.84 7.86 6.88 6.30 5.89 5.51 4.91 4.13 3.54 CIR 201.7 193.8 186.2 178.3 173.7 170.4 167.4 162.6 156.2 151.4 A (mm) 215.4 207.3 199.6 191.8 187.2 183.9 180.8 176.0 169.7 165.1 B (mm) 182.6 175.0 166.9 159.0 154.4 151.1 148.1 143.3 137.2 132.6 C (mm) 205.0 197.4 189.5 181.6 177.0 173.7 170.7 165.9 159.8 154.9 D (mm) .05 X 45º [1.27] .49 [12.45] .50 [12.7] A C D B SIDE VIEW All dimensions shown are for reference only. Consult factory for your specific configuration. FRONT VIEW REAR VIEW quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
Concentric AB-F20/F30 PMP-2011-06 21 Model Code for F3030 Series Double Pumps EXAMPLE: (F3)- F3030- W- 7 - E- 30- B - + - 30- B - 12- A- 10 - L Special Seals Series Mount Front Cover Inlet Port Displacements Front Outlet Port Displacements Rear Outlet Port Drive Shaft Shaft Seal Design Designation Rotation 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Rear Inlet Port 10 (Rear Outlet Port) Order Code Description A .750”, SAE 4-Bolt Split Flange AM .750”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) V #16 SAE (1 5/16” - 12) Straight Thread Contact factory for other requirements. 11 (Drive Shaft) Order Code Description 1 SAE “C” Straight Keyed, 1.250” Diameter, 1.875” Ext. 12 SAE “C” 14-Tooth Spline, Flat Root-Side Fit Contact factory for other requirements. 12 (Shaft Seal) Order Code Description A Single Shaft Seal (30 PSI) D High Pressure (100 PSI) G Double Shaft Seals, Outer Inverted, Buna (for wet mounting applications) H Double Shaft Seals, Outer Inverted, Viton (for wet mounting applications) K Double Shaft Seals, Excluder Outer, Buna Inner (for dry mounting applications) M Double Shaft Seals, Excluder Outer, Viton Inner (for dry mounting applications) X None 13 (Design Designation) Order Code Description 10 Standard 14 (Rotation) Order Code Description R Clockwise Rotation L Counterclockwise Rotation ORDERING INFORMATION Each option has been assigned an order code -- listed in the tables below -- for placement in the sequence shown at right. 1 (Special Seals) Order Code Description F3 Viton Seal Omit Standard 2 (Series) Order Code Description F3030 F3030 Series Double Gear Pump 3 (Mount) Order Code Description W Wet Mount Flange (pilot diameter sealing and provides for optional double shaft seal) 4 (Front Cover) Order Code Description 4 SAE “C” 4-Bolt Mount (contact factory) 7 SAE “C” 2-Bolt Mount (contact factory) 8 SAE “C” 2/4-Bolt Combination Mount 5 (Inlet Port) Order Code Description E 2.00”, SAE 4-Bolt Split Flange EM 2.00”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) F 2.50”, SAE 4-Bolt Split Flange FM 2.50”, 4-Bolt Metric Split Flange (M14 x 2.0” threads) G 3.00”, SAE 4-Bolt Split Flange GM 3.00”, 4-Bolt Metric Split Flange (M16 x 2.0” threads) Y #30 SAE (2 1/2” - 12) Straight Thread Contact factory for other requirements. 6 (Displacements, Front Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 18- 58 cc/3.54 in. 3 32- 104 cc/6.30 in. 3 21- 68 cc/4.13 in. 3 35- 113 cc/6.88 in. 3 25- 80 cc/4.91 in. 3 40- 129 cc/7.86 in. 3 28- 91 cc/5.51 in. 3 45- 145 cc/8.84 in. 3 30- 97 cc/5.89 in. 3 50- 161 cc/9.82 in. 3 7 (Front Outlet Port) Order Code Description B 1.00”, SAE 4-Bolt Split Flange BM 1.00”, SAE 4-Bolt Metric Split Flange (M10 x 1.50” threads) C 1.250”, SAE 4-Bolt Split Flange CM 1.250”, SAE 4-Bolt Metric Split Flange (M12 x 1.75” threads) D 2.00”, SAE 4-Bolt Split Flange DM 2.00”, SAE 4-Bolt Metric Split Flange (M14 x 2.0” threads) V #16 SAE (1 5/16” - 12) Straight Thread W #20 SAE (1 5/8” - 12) Straight Thread X #24 SAE (1 7/8” - 12) Straight Thread Contact factory for other requirements. 8 (Rear Inlet Port) (Contact Factory) Order Code Description + None 9 (Displacements, Rear Section) Order Code Cm 3 /In 3 Order Code Cm 3 /In 3 18- 58 cc/3.54 in. 3 32- 104 cc/6.30 in. 3 21- 68 cc/4.13 in. 3 35- 113 cc/6.88 in. 3 25- 80 cc/4.91 in. 3 40- 129 cc/7.86 in. 3 28- 91 cc/5.51 in. 3 45- 145 cc/8.84 in. 3 30- 97 cc/5.89 in. 3 50- 161 cc/9.82 in. 3 quality products for mechanical & fluid power ~ jbj Techniques Limited, www.jbj.co.uk UK distributor for Concentric Hydraulics
