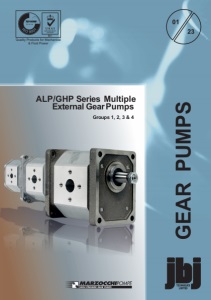

01 23 Quality Products for Mechanical & Fluid Power ALP/GHP Series Multiple External Gear Pumps Groups 1, 2, 3 & 4 GEAR PUMPS
® patented Elika profile is everything 01737 767493 info@jbj.co.uk www.jbj.co.uk - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements You Tube www.jbj.co.uk/ .html pumps motors and Gear pump high pressure, teflon shaft seal can bear over-pressures of over 210 bar. A system of radial sealing at the shaft that can bear enormous internal over-pressures without resulting in damage. This radial sealing is particularly useful in single direction hydraulic motors when, in certain conditions of use, high over-pressures will be generated at the motor output. With bi-directional motors, the area adjacent to the seal ring of the drive-shaft is maintained at atmospheric pressure by the drainage circuit. In single-direction motors, this area is directly connected to the output so any over-pressure impacts directly on the seal ring, causing the lip to turn over or the ring to be expelled from its seat with a consequent leakage of fluid. The Teflon (P450) material adapts evenly to the texture of the machining on the shaft to guarantee a perfect seal. Reduce noise levels by an average of 15 dBA. Including group 2, 3 and multiple pumps. The helical profile of the gears reduces pressure oscillations and vibrations produced by the pump and transmitted to the other components, reducing the noise of the hydraulic system. Axial forces induced by the helical teeth are optimally balanced in all operating conditions by the axial compensation system integrated in the pump cover. Specific compensation areas into flange and cover, insulated by special gaskets reinforced with anti-extrusion, allow for fully free axial and radial movement of the bushings, which is proportional to pump operating pressure. In this way, internal leakage is dramatically reduced, ensuring very good volumetric and mechanical pump performances, as well as proper lubrication of pump’smoving parts. FEA of teflon high pressure seal Low noise, low pulsation helical gear pumps in group II, III & multiple formats The package consists of a bellhousing and flexible drive coupling that are fully machined to suit the pump and any driving interface; diesel or petrol engine, electric or hydraulic motor. jbj's in-house design team and manufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. A range of composite bellhousings to accommodate electric motor flanges from 300 mm diameter to 800 mm diameter. See pages 40 to 44 of the Pump Drive Components technical specification catalogue. Acollection of different ways of connecting hydraulic pumps andmotors to various driver devices. Allow close coupling of hydraulic pumps directly to the flywheel / flywheel housing of diesel engines, electric and hydraulic motors. www.jbj.co.uk/hydraulic-adaptors.html an excellence in engineering
Gear Motors Contents Page Full range of gear pumps and motors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5 Basic design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 ALP-GHPSeriesrange......................................................................... 7 ALP- GHP Series installation and running information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 12 0.25 & 0.5 Micro Pump Series ordering codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 A0.25-A0.5Seriesdimensions&technicaldatatable ................................................. 15 I0.25 - I0.5 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 P0.25 - P0.5 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 ALP1 - GHP1 Series ordering codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 ALPA1 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 ALPI1 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 ALPP1 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GHPA1 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 GHPI1 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 GHPP1 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 ALP2 - GHP2 Ordering codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 ALPA2 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 ALPI2 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 ALPP2 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 GHPA2 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 GHPI2 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 GHPP2 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 ALP3 - GHP3 Ordering codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 ALPA3 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 ALPI3 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 ALPP3 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 GHPA3 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 GHPI3 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 GHPP3 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 ALP4 Ordering codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ALPA4 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 ALPI4 Series dimensions & technical data table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 ALPP4 Series dimensions & technical data table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Modular Multiple Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Assembly Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 - 46 Gear Pump construction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Valves and mounting arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 #DriveLineHarmony ............................................................................ 50 The details contained within this catalogue are reproduced in accordance with the latest information at publication of this catalogue. Errors and Omissions Excepted Last update: 03/01/2023
See specific catalogue for further details or contact jbj Techniques Ltd technical office, telephone: 01737 767493 or email: info@jbj.co.uk
01737 767493 info@jbj.co.uk www.jbj.co.uk quality products for mechanical & fluid power - registered in England No: 1185469 - jbj Techniques Limited is ISO certificated, committed to international coordination & unification of industrial standards. A range of products ATEX certificated to directive 94/9/E requirements GHM Series Gear Motors The GHM series offer identical configurations to the ALM series but more robust thanks to the cast iron front flange and rear cover. ALM Series Gear Motors For medium to high pressure rates the ALM series is ideal for mobile and industrial sectors. Mono-directional and bi-directional with internal and external drain available. ALPC/GHPC Series Short Multiple Gear Pumps For reduced axial layout. Available with both flanges and covers in aluminium or cast iron. High production rates, performance consistency and absolute reliability ensure this a benchmark product for the hydraulic power pack market. 1P Series Gear Pumps Extensive range and very high performance of these pumps integrated in to micro power packs make them ideal for many applications from aerospace to marine, medical to automotive. 0.25 - 0.5 Series Micro Gear Pumps This product range includes pumps of displacements (up to 200cc/rev) in a full aluminium configuration, able to withstand medium to high pressures and using different versions of flanges (European, German and SAE), porting and shafts. Mono-directional as well as reversible. ALP Series Gear Pumps The GHP series offer identical configurations to theALP series and guarantees extreme reliability in very high pressure applications. Ideal for mobile applications from agricultural to construction machines as the cast iron allows more flange, cover and port options. GHP Series Gear Pumps Modularity and flexibility are the characteristics of these pumps. They allow the assembly of pump modules of the ALP and GHP (from 0.25 to 4) enabling solutions to a wide range of application requirements. Ideal pump for applications which require a fast approach and/or return of the actuator at low loads and slow motion of the actuator at high loads. e.g. log splitters, compactors & presses. Volumetric andmechanical efficiencies as well as low noise levels are further benefits of this range. High/Low 2-Pass Gear Pumps ALP/GHP Series Multiple Modular Gear Pumps ELIKA® The low noise, low pulsation helical gear pump. Groups 2, 3, 4 and multiple pumps. www.jbj.co.uk/gearpumps.html Reduces the noise level by up to 20 dBA. jbj Techniques Limited, UK distributor for
Gear Pumps Basic Design BASIC PUMP PARTS 1 - Drive Gear 2 - Driven gear 3 - Bushings 4 - Body 5 - Flange 6 - Cover 7 - Rotary shaft seal 8 - Compensation seals 9 - Anti-extrusion seals - stop Ring - support ring External gear pumps are the most popular pumps used in modern hydraulic systems. They feature versatility, strength and long useful life. Their simple construction ensures limited purchase costs and servicing. They feature versatility, strength and long useful life. Their simple construction ensures limited purchase costs and servicing. Thanks to these basic concepts, together with ever-improving product design and features, research-based on many years of experience, accuracy in material selection, production process followed in great detail and tests on mass-produced parts, our gear pumps have reached top quality standards. Shaft of the driving gear projecting beyond the flange mounts a twin-lip seal ring (the inner lip being a seal and the outer being a dust seal). An elastic securing ring secures the ring in place. Gears are made of special steel. Their manufacturing process includes case-hardening and quench hardening. Then gears are ground and fine finished so to have a high degree of surface finishing. Proper tooth profile design and geometric proportions ensure low pulsation levels and low noise levels during pump operation. Bushings are made of special low-friction and hi-resistant aluminium alloy and manufactured from die-casting. They are equipped with antifriction DU bearings (except forALP1 pumps). Pump body is aluminiumprofiled by means of extrusion. Micro-pumps andALP series models feature high-tensile aluminumalloy flange and covers, whereas GHP models have globular cast iron flange and covers. These materials minimize part deformation even when subject to continuous, intermittent and peak high pressure values. Special compensation zones onto bushings, insulated by special preformed seals with anti-extrusion ring, allow fully free axial and radial movement to the bushings, which is proportional to pump operating pressure. In this way, internal dripping is dramatically reduced, thus ensuring very good pump performance (both in terms of volume and in general) and proper lubrication of pump moving parts. Marzocchi Pompe has introduced a splined drive system between the elements of amodular multiple pump. Shaft profile is splined by rolling, whereas the steel splined joint is a result of precision casting. Thanks to an accurate system design and precise setting of connecting part clearances, offsets occurring in assembled modular stages can be compensated still ensuring high power. Multiple pump stages can be easily installed, aligned and sealed through the use of a centring ringmade out of two pieces of different materials. This catalogues describes some models of modular stages belonging to the newALP and GHP series. These gear pumps consist of a pair of gears supported by two aluminumbushes, a body, a flange and a cover. www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 10 11 6 2 7 5 8 9 3 1 4 8 9 6 3 10
Bi-directional motors. Five different families of Marzocchi gear modular pumps are available. Within each of them, the different displacements are obtained using different width gears. The production range offers different flanges, shafts and delivery and intake ports. They are not all included in this non-comprehensive catalogue. Therefore please refer to overview tables included in the catalogues of the single stage pumps belonging to ALP and GHP series in order to understand the various possibilities. The following diagrams specify available displacements. Gear Pumps ALP-GHP Series Product Range 7 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony Special Versions “TR”Version suitable for inlet pressure up tomax. 6 bar absolute. Range between -10°C and +120°C. In the range between -10°C and +80°Cmaximum pressures as stated in the individual product tables are allowed; beside that figures in the ‘P1’ column of the tables should not be exceeded. "VV"Version suitable for fluid at high temperatures. "H"Version suitable for fluid at low temperature. "V"Version suitable for fluid at high temperatures. Range between -40°C and +120°C. In the range between -10 °C and +80°C maximum pressures as stated in the individual product table; below and beside that figures in the ‘P1’ column of the tables should not be exceeded. Range between -40°C and +80°C. In the range between -10 °C and +80°C maximum pressures as stated in the product table; below that figures in the ‘P1’ column of the tables should not be exceeded. For special uses are also available: Contact jbj Techniques technical office for assistance in selection of correct pump for your application, telephone: +44 (0)1737 767493, email: info@jbj.co.uk Range between -10°C and +150°Cwithmaximumpressure 20 bar "ST"Version suitable for fluid at high or low temperature. The above descriptions are to be specified in the SEALfield of the ordering code. GHP3 ALP3 0,25 0,5 GHP1 ALP1 GHP2 ALP2 ALP4 0.19 0.26 0.32 0.38 0.51 0.64 0.50 0.63 0.88 1.00 1.25 1.50 1.4 2.1 2.8 3.5 4.1 5.2 6.2 7.6 9.3 11.0 13.8 4.5 6.4 7.0 8.3 9.6 11.5 14.1 16 17.9 21.1 23.7 25.5 28.2 35.2 20 22 26 33 39 44 52 61 7178 87 87 106 128 147 166 181 200 3 Displacement (cm /rev)
Fill the pump with fluid, and turn it by hand. » the torque value transmitted by the first stage shaft is the total of the torque values transmitted by each single stage. Before starting the systemon a continuous basis, we suggest to adopt some simple precautions. Protect drive shaft seal during pump painting. Check if contact area between seal ring and shaft is clean: dust could cause quicker wear and leakage. Ensure that intake and return pipes ends are always below fluid level and as far fromeach other as possible. When possible, refer to the indications given on single stage catalogues for ALP, GHP and micro-pump series to set torque values as absorbed by each pump stage. Max. torque value applicable to the primary drive of the front stage of a modular multiple pump is specified in the overview table in the catalogue forALP and GHP series. Max. torque values applicable to the secondary shafts of middle and/or back stages are the following: Disconnect pump drain during startup to bleed air off the circuit. Avoid lower rotation speed thanmin. allowed with pressure higher than P1. »max. rotation speed is the lowest rotation speed amongmax. rotation speeds of each stage. Remove all dirt, particles and all foreign bodies from flanges connecting inlet and delivery ports. »operating pressures are limited by max. torque values which can be transmitted by the shaft of the first stage and the shaft connecting one or more stages. Max. Torque 18 Nm 18 Nm 50 Nm 100 Nm 220 Nm 550 Nm Check for the proper alignment of pump shaft andmotor shaft. It is necessary that the connection does not induce axial or radial loads. In the case of amono-directional motor check for the direction of rotation of the pump to be consistent with the drive shaft (in case of single rotation pump). InstallationNotes Install the pump below head if possible. At first startup, set pressure limiting valves at min. value possible. Group 0.25 0.5 ALP, GHP1 ALP, GHP2 ALP, GHP3 ALP4 Do not start the systemat low temperatures under load conditions or after long stops (always avoid or limit load starting for pump longer life). Start the system for a fewminutes and turn on all components; bleed air off the circuit to check its proper filling. Check fluid level in the tank after loading all components. At last, gradually increase pressure, continuously check fluid and moving parts temperature, check rotation speed until you reach set operating values that shall be within the limits indicated in this catalogue. It is essential for correct running, top performance and longer life of hydraulic gear pumps to follow the installation and running information provided in this catalogue. Some general considerations should be made regarding the hydraulic system, in which the pump is to be fitted. Special attention should be given to hydraulic system design and assembly, especially to intake, delivery, return and drain pipes and position of system parts (valves, filters, tanks, heat exchangers and accumulators). Proper safety devices and reliable instruments to avoid fluid turbulence and prevent air, water or foreign bodies from entering into the system are of major importance. It is also very important to equip the hydraulic systemwith a proper filtering unit. »ensure that power absorbed by the front stage is higher than or equal to the power absorbed by the back stage in two-stage pumps or the middle parts in three-stage pumps or pumps featuringmore stages. For correct use of Marzocchi modular pumps, please comply with the following: Gear Pumps ALP-GHP Series Installation and Running Information 8 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Pressure <140 bar 140 to 210 bar >210 bar Ratiobx = 75 25-40 μm 12-15 μm 6 -12 μm It is recommended to use a filtering systemhaving absolute filtering capability of 5 μmor lower in the systems using sophisticated valve slaves. CleaningAnd Filtering The System It is widely known that most pump early failures are due to contaminated fluids. The extreme reduction of the tolerances required in the design of the pumps, and therefore their operation with minimum clearances, are heavily influenced by a fluid that is not perfectly clean. It is proved that particles circulating in the fluid act as abrasive agents, damaging the surfaces they touch and increasing the quantity of contaminant. For this reason, ensure that system is perfectly clean during startup and keep it clean for its whole operating life. Regular checks should be made for contamination of the oil. Preventive actions include: proper cleaning of the system during assembly, deburring, eliminating the welding scumand fluid filtering before filling up. Starting contamination level of system fluid should not exceed class 18/15 (ref. ISO 4406). Even fresh fluids might exceed this contamination level; therefore always pre-filter the fluid when filling up or topping up the system. Fit a proper tank; its capacity should be proportional to the volume displaced in one working minute. Fluid contamination levels should be monitored by use of correct filter types. Two parameters tell which filter is most suitable: absolute filtering power andbfiltering ratio. Low absolute filtering power and highbfiltering ratio for small particles help ensuring good filtration. It is then very important to limit not only the size of particulate, but also the number of smaller particles that pass through the filter. It goes without saying that with an operating pressure increase and according to the system sophistication degree, filtering should becomemore andmore efficient. The filtering system shall always ensure contamination levels not exceeding the values indicated below: NAS 1638 Class 10 9 8 ISO4406 Class 19/16 18/15 17/14 Hydraulic Fluids Use specific mineral oil based hydraulic fluids of good anti-wear, anti-foaming (rapid deaeration), antioxidant, anti-corrosion and lubricating properties. Fluids should also comply with DIN 51525 and VDMA24317 standards and compliant with 11th stage of FZG test. Fluid kinematic viscosity ranges are of following: allowed value (upon verification) 6 to 500 cSt For the standardmodels, the temperature of the fluid should be between -10°C and +80°C. If fluids other than the above mentioned type are used, please always indicate type of used fluid and operating conditions so that jbj Techniques technical office can advise of possible problems with compatibility or useful life of systemparts. Intake line 0.5 to 1.6m/s Hydraulic systempipes should show no sudden changes of direction, sharp bends and sudden differences in cross-section. They should not be too long or out of proportion. Pipe cross-section should be sized so that fluid velocity does not exceed recommended values. It is advisable to carefully consider the possible diameter reduction of the inlet or outlet pipes fitted on flange fittings. Delivery line 2 to 6m/s Under standard working conditions, intake pipe pressure is lower than atmospheric pressure. The operating inlet pressure should range between 0.7 and 3 bars (absolute). recommended value 10 to 100 cSt Inlet &Delivery Lines value allowed at startup <2000 cSt Inlet Pressure Return line 1.6 to 3m/s Gear Pumps ALP-GHP Series Installation and Running Information 9 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Pressure Definition Product tables show threemax. pressure levels (P1, P2 and P3) to which each pump can be used. P1 = continuous max. pressure. P3 = peak max pressure. P2 = intermittent max. pressure. P3 P2 P1 t (sec) Max. 20 sec. Max. 2 sec. p(bar) Gear Pumps ALP-GHP Series Installation and Running Information 10 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony Size 0.50 0.75 1.00 1.30 1.60 2.00 ALP4 Min. speed [rpm] 400 Marzocchi pump flexibility is also highlighted by the wide selection of rotation speeds they can work at. Max. values are indicated in product tables and change according to the model, while min. values are as follows: Size 30 33 40 50 60 66 80 94 110 120 135 GHP1 Min. speed [rpm] 800 600 Size 2 3 4 5 6 7 9 11 13 16 20 Min. Rotation Speed Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50 Size 18 24 30 36 48 60 ALP1 Min. speed [rpm] 800 600 ALP3 Min. speed [rpm] 500 400 0.25 Min. speed [rpm] 1500 1000 0.5 Min. speed [rpm] 1000 800 ALP2 Min. speed [rpm] 800 600 500 GHP2 Min. speed [rpm] 800 600 500 Size 30 33 40 50 60 66 80 94 110 120 135 GHP3 Min. speed [rpm] 500 400 Size 2 3 4 5 6 7 9 11 13 16 20 Size 130 160 190 220 250 270 300 Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50
Gear Pumps ALP-GHP Series Installation and Running Information 11 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony P1, P2 and P3 pressure values can be reached by more stages of the multiple pump only if the max. torque values applicable to the selected shafts are not exceeded. They can also be reached only if the following rotation speeds are not exceeded: Size 18 24 30 36 48 60 Pressure Definition (continued) 0.25 Speed [rpm] 3000 Size 2 3 4 5 6 7 9 11 13 16 20 GHP1 Speed [rpm] 3500 3000 2000 1500 ALP1 Speed [rpm] 4000 3500 2500 2000 1500 Size 0.50 0.75 1.00 1.30 1.60 2.00 ALP2 Speed [rpm] 3000 2500 2000 1500 GHP2 Speed [rpm] 2500 2000 1500 0.5 Speed [rpm] 1000 2500 2000 Size 30 33 40 50 60 66 80 94 110 120 135 ALP3 Speed [rpm] 2500 2000 1500 1000 Size 30 33 40 50 60 66 80 94 110 120 135 Size 2 3 4 5 6 7 9 11 13 16 20 Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50 GHP3 Speed [rpm] 2000 1500 1000 Size 130 160 190 220 250 270 300 Size 6 9 10 12 13 16 20 22 25 30 34 37 40 50 ALP4 Speed [rpm] 2000 1500 Marzocchi modular multiple pumps only have a single direction of rotation. Direction of rotation of single rotation pumps is conventionally defined as follows: when standing before the pump with driving shaft up with its projecting end towards the observer, the pump is rotating clockwise in case of right-hand rotation "D"; therefore, delivery side is on the right, whereas intake side is on the left. The contrary will happen with left-hand pumps "S", keeping the same point of view. The above applies only to front and back stages. Middle stages have no direction of rotation of their own as it is set by the way they are assembled to the front or back stage. Always refer to the direction of the arrow on the pump body to clearly determine the delivery side of a middle stage, and therefore its direction of rotation. Direction of Rotation S = counter-clockwise rotation INPUT OUTPUT D = clockwise rotation INPUT OUTPUT R = reversible rotation
Calculate flow rate (Q) as follows: In case of driving through gears, pulleys or chains, the T option is recommended. This option allow radial and/or axial loads on the pump shaft. Calculate hydraulic power (P), transferred to fluid froma pump subject to a pressure differential between inlet and delivery as follows: Drive Connect the pump to the motor using a mechanical power transmission coupling so that no radial and/or axial force is transmitted to the pump shaft during rotation, otherwise pump efficiency will dramatically drop due to early wear of inner moving parts. jbj Techniques have a wide range of suitable couplings to suit a wide range of applications and we can advise on which coupling depending on the circumstances of the application. Absorbed power Dp = pressure differential [bar] Calculate the velocity (v) of a fluid in a pipe as follows: V = displacement [cm³/rotation] A= inside area of pipe [cm²] v =Q / 6 •A[m/s] Calculate necessary torque (M) of a pump subject to pressure differential between inlet and delivery as follows: Frequently Used Formulas Q= V • n • 10 -3 / hvol [litre/min] n = rotation speed [rotations per minute] V = displacement [cm³/rotation] Q= flow rate [litre/min] hvol = pump volumetric efficiency (take 0.95 as an indicative value for rotation speeds ranging between 1000 and 2000 rotations per minute) M= (V •Dp) / (62.8 • hhm) [Nm] For further details contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 Fluid velocity Absorbed flow rate Dp = pressure differential [bar] Absorbed torque hhm= hydromechanical efficiency (take 0.80 as indicative value under cold conditions and 0.85 under working conditions). Q= flow rate [litre/min.] P= (Q •Dp) / (600 •htot) [kW] htot = total pump efficiency (hhm •hvol) Contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 for further details on efficiency. The proper values for flow rate, torque and supplied according to pressure differential, rotation speed and set test conditions, can be found on thePerformance Curvepages. These pumps are hydraulic machines converting mechanical power into hydraulic power. This section deals with rotary positive-displacement pumps. In this type of pump, a given volume of fluid flows from inlet to outlet at each shaft rotation (theoretical displacement). Pressure depends on delivery line resistance to Values for hvol andhhm (and consequentlyhtot) depend on pressure differential between supply and delivery, rotation speed, fluid features (temperature and viscosity) and filtering degree. Gear Pumps ALP-GHP Series Installation and Running Information 12 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Gear Pumps ALP-GHP Series Information 13 The diagram indicating flow rate variations according to speed and pressure, shows that not all the theoretically available fluid is transferred from inlet to outlet because of pump internal leakage. Leakage can be greatly reduced through pressure axial compensating systems (as described at the beginning of this catalogue) but never eliminated. Leakage increases as circuit pressure increases. fluid flow. As gear pumps only transfer fluid, they are subject to pressure generated by the circuit. Therefore, if system flow rate and motor rotation speed are known, it is easy to select the right pump displacement and its model. The following diagrams show, for each single displacement, the typical required power as a function of rotation speed and pressure generated by the system and allow you to easily spot the product suitable for your application. Apump requires energy, just like any other hydraulic machine. Part of this power is given to the fluid to increase pressure required by the circuit, the remaining part is used to cure pump internal friction. Therefore, for proper pump operation, supplied torque shall be higher than theoretical torque. Once the pump flow rate has been selected, different flanges, shafts, inlet and outlet port position and type are available to suit most applications. In the product tables, the flow, shown at 1500 rpm, has been evaluated using a value of volumetric efficiency of 95%. All the drawings represent pumps with clockwise rotation. Reversing the direction of rotation also involves reversing of the suction side with the delivery side ports. www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Group Rotation Size Ports*** Seals* Options* A0.25 I0.25 omit* D Clockwise The product data sheets show our standard model types. The synoptic tables for flanges, shafts and ports show all the possible configurations. For further details about the availability of each configuration please contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 I0.5-1,00 =mediumelement, group 0.5, clockwise or anti-clockwise rotation, 0,88 cm³/rev displacement, GAS threaded ports, standard seals. A0.5-D-1,30 = front element, group 0.5, clockwise rotation, 1,00 cm³/rev displacement, cilindrical shaft, GAS threaded ports, standard seals. P0.25-D-36 = rear element, group 0.25, clockwise rotation, 0,38 cm³/rev displacement, metric threaded ports, standard seals. omit = European flange + shaft T0 + ports E + standard seals. Pump Standard Types A= flangeA+ shaft C1 + ports FA+ standard seals. Examples Ordering Code Shaft** Seals (***) = to be specified if non standard ... Options AS (Separate inlet) omit (T range = -10°C + 80°C) RO (High pressure application) (*) = don’t specify the direction of rotation. ... TR (Reinforced shaft seal) V (**) = to be specified only A element. 18 24 30 36 48 60 Gear Pumps 0.25 - 0.5 Series 14 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony www.jbj.co.uk/hydraulic-adaptors.html Acollection of different ways of connecting hydraulic pumps andmotors to various driver devices. A range of composite bellhousings to accommodate electric motor flanges from 300 mm diameter to 800 mm diameter. See pages 40 to 44 of the Pump Drive Components technical specification catalogue. The package consists of a bellhousing and flexible drive coupling that are fully machined to suit the pump and any driving interface; diesel or petrol engine, electric or hydraulic motor. jbj's in-house design teamandmanufacturing facility provide tailored solutions for your applications at competitive prices with quick delivery. allow close coupling of hydraulic pumps directly to the flywheel / flywheel housing of diesel engines, electric and hydraulic motors. P0.25 A0.5 I0.5 P0.5 S Counter Clockwise 0.50 0.75 1.00 1.30 1.60 2.00
Gear Pumps A0.25 - A0.5 Series M10x1 threads depth 9 mm. Accessories supplied with the standard pump: woodruff key (code 522051), M6 hexagonal nut (code 523011), washer (523001). G1/4 threads depth 9 mm. 15 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET A0.25-D-18 0.19 0.28 190 210 230 7000 24 50.5 M10 x 1 A0.5-D-1,60 1.25 1.79 190 210 230 5000 31.5 65.5 G¹⁄ A0.25-D-36 0.38 0.55 190 210 230 7000 25.5 53.5 M10 x 1 A0.5-D-0,50 0.50 0.71 190 210 230 7000 28.5 59.5 G¹⁄ Type Displacement Flow at Maximum Pressure Maximum Dimensions A0.5-D-1,30 1.00 1.43 190 210 230 6000 30.5 63.5 G¹⁄ A0.5-D-2,00 1.50 2.14 190 210 230 4000 32.5 67.5 G¹⁄ 3 cm /rev litres/mim bar bar bar rpm mm mm mm 1500 rev/min P P P Speed L M D I 2 3 A0.25-D-24 0.26 0.36 190 210 230 7000 24.5 51.5 M10 x 1 A0.25-D-30 0.32 0.46 190 210 230 7000 25 52.5 M10 x 1 A0.25-D-48 0.51 0.73 190 210 230 7000 26.5 55.5 M10 x 1 A0.25-D-60 0.64 0.91 190 210 230 7000 27.5 57.5 M10 x 1 A0.5-D-1,00 0.88 1.24 190 210 230 7000 30 62.5 G¹⁄ A0.5-D-0,75 0.63 0.89 190 210 230 7000 29 60.5 G¹⁄
Gear Pumps I0.25 - I0.5 Series M10x1 threads depth 9 mm. G1/4 threads depth 9 mm. 16 I0.5-0.50 0.50 0.71 190 210 230 7000 31 62 G¹⁄ I0.5-1.60 1.25 1.79 190 210 230 5000 34 68 G¹⁄ I0.5-1.30 1.00 1.43 190 210 230 6000 33 66 G¹⁄ 1500 rev/min P P P Speed L M D I 2 3 I0.25-36 0.38 0.55 190 210 230 7000 28 56 M10 x 1 I0.5-0.75 0.63 0.89 190 210 230 7000 31.5 63 G¹⁄ I0.25-30 0.32 0.46 190 210 230 7000 27.5 55 M10 x 1 Type Displacement Flow at Maximum Pressure Maximum Dimensions I0.25-24 0.26 0.36 190 210 230 7000 27 54 M10 x 1 I0.25-48 0.51 0.73 190 210 230 7000 29 58 M10 x 1 I0.5-1.00 0.88 1.24 190 210 230 7000 32 64 G¹⁄ I0.25-60 0.64 0.91 190 210 230 7000 30 60 M10 x 1 3 cm /rev litres/mim bar bar bar rpm mm mm mm I0.25-18 0.19 0.28 190 210 230 7000 26.5 53 M10 x 1 I0.5-2.00 1.50 2.14 190 210 230 4000 35 70 G¹⁄ www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET
Gear Pumps P0.25 - P0.5 Series M10x1 threads depth 9 mm. G1/4 threads depth 9 mm. 17 P0.5-D-0,75 0.63 0.89 190 210 230 7000 31.5 66.5 G¹⁄ P0.25-D-30 0.32 0.46 190 210 230 7000 27.5 58.5 M10 x 1 P0.25-D-60 0.64 0.91 190 210 230 7000 30 63.5 M10 x 1 P0.5-D-1,30 1.00 1.43 190 210 230 6000 33 69.5 G¹⁄ 3 cm /rev litres/mim bar bar bar rpm mm mm mm P0.25-D-18 0.19 0.28 190 210 230 7000 26.5 56.5 M10 x 1 P0.25-D-24 0.26 0.36 190 210 230 7000 27 57.5 M10 x 1 P0.25-D-36 0.38 0.55 190 210 230 7000 28 59.5 M10 x 1 P0.25-D-48 0.51 0.73 190 210 230 7000 29 61.5 M10 x 1 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M D I 2 3 P0.5-D-0.50 0.50 0.71 190 210 230 7000 31 65.5 G¹⁄ P0.5-D-1,60 1.25 1.73 190 210 230 5000 34 71.5 G¹⁄ P0.5-D-2,00 1.50 2.14 190 210 230 4000 35 73.5 G¹⁄ P0.5-D-1,00 0.88 1.24 190 210 230 7000 32 67.5 G¹⁄ www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET
ALP GHP A1 I1 P1 omit* * ° D Type Rotation Size Ports° Seals° Options° omit A** AQ** °° Clockwise S Counter Clockwise Series Pump Standard Types GHPP1-D-5 = rear element GHP series, group 1, clockwise rotation, 3.5 cm³/rev displacement, flanged ports E type, standard seals. ALPA1-D-9 = front element ALP series, group 1, european flange, clockwise rotation, 6.2 cm³/rev displacement, 1:8 tapered shaft, flanged ports E type, standard seals. ALPI1-6 =mediumelementALP series, group 1, clockwise or anti-clockwise rotation, 4.1 cm³/rev displacement, flanged ports E type, standard seals. The product data sheets show our standard model types. The synoptic tables for flanges, shafts and ports show all the possible configurations. For further details about the availability of each configuration please contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 Gear Pumps ALP1 - GHP1 Series Ordering Code Shaft* Seals * = for the modular element don’t specify direction of rotation ° = to be specified if not standard °°AC common inlet ** = to be specified only A element ... omit (T range = -10°C + 80°C) Options **TR reinforced seal. AS separated inlet °° = only for GHP series V 18 6 3 4 5 6 7 9 11 13 16 20 A2** °° Element www.jbj.co.uk/gear-pumps.html #DriveLineHarmony
Gear Pumps ALPA1 Series Accessories supplied with standard pump: woodruff key (code 522054), M10x1 exagonal nut (code 523015), washer (code 523004). Standard ports: M6 threads depth 13 mm. 19 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET ALPA1-D-13 9.3 13.3 180 195 210 2600 51.5 109 ALPA1-D-2 1.4 2.0 250 270 290 6000 40 86 ALPA1-D-20 13.8 19.7 150 165 180 1800 58 122 Type Displacement Flow at Maximum Pressure Maximum Dimensions 3 cm /rev litres/mim bar bar bar rpm mm mm ALPA1-D-4 2.8 3.9 250 270 290 5000 42 90 ALPA1-D-5 3.5 4.9 250 270 290 5000 43 92 ALPA1-D-7 5.2 7.4 230 245 260 4000 45.5 97 ALPA1-D-6 4.1 5.9 250 270 290 4000 44 94 ALPA1-D-3 2.1 2.9 250 270 290 6000 41 88 1500 rev/min P P P Speed L M 1 2 3 ALPA1-D-9 6.2 8.8 230 245 260 3800 47 100 ALPA1-D-11 7.6 10.8 200 215 230 3200 49 104 ALPA1-D-16 11.0 15.7 170 185 200 2200 54 114
Gear Pumps ALPI1 Series Standard ports: M6 threads depth 13 mm 20 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony ALPI1-11 7.6 10.8 200 215 230 3200 55 110 ALPI1-20 13.8 19.7 150 165 180 1800 64 128 ALPI1-4 2.8 3.9 250 270 290 5000 48 96 ALPI1-16 11.0 15.7 170 185 200 2200 60 120 Type Displacement Flow at Maximum Pressure Maximum Dimensions 3 cm /rev litres/mim bar bar bar rpm mm mm ALPI1-3 2.1 2.9 250 270 290 6000 47 94 ALPI1-13 9.3 13.3 180 195 210 2600 57.5 115 ALPI1-2 1.4 2.0 250 270 290 6000 46 92 ALPI1-5 3.5 4.9 250 270 290 5000 49 98 ALPI1-6 4.1 5.9 250 270 290 4000 50 100 1500 rev/min P P P Speed L M 1 2 3 ALPI1-7 5.2 7.4 230 245 260 4000 51.5 103 ALPI1-9 6.2 8.8 230 245 260 3800 53 106 OUTLET INLET
Gear Pumps ALPP1 Series Standard ports: M6 threads depth 13 mm. 21 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M 1 2 3 ALPP1-D-2 1.4 2.0 250 270 290 6000 46 86.5 ALPP1-D-3 2,.1 2.9 250 270 290 6000 47 88.5 ALPP1-D-4 2.8 3.9 250 270 290 5000 48 90.5 3 cm /rev litres/mim bar bar bar rpm mm mm ALPP1-D-6 4.1 5.9 250 270 290 4000 50 94.5 ALPP1-D-9 6.2 8.8 230 245 260 3800 53 100.5 ALPP1-D-13 9.3 13.3 180 195 210 2600 57.5 109.5 ALPP1-D-16 11.0 15.7 170 185 200 2200 60 114.5 ALPP1-D-5 3.5 4.9 250 270 290 5000 49 92.5 ALPP1-D-11 7.6 10.8 200 215 230 3200 55 104.5 ALPP1-D-7 5.2 7.4 230 245 260 4000 51.5 97.5 ALPP1-D-20 13.8 19.7 150 165 180 1800 64 122.5
Gear Pumps GHPA1 Series Accessories supplied with standard pump: woodruff key (code 522054), M10x1 exagonal nut (code 523015), washer (code 523004). Standard ports: M6 threads depth 13 mm. 22 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET Type Displacement Flow at Maximum Pressure Maximum Dimensions GHPA1-D-2 1.4 2.0 270 290 310 6000 40 86 GHPA1-D-4 2.8 3.9 270 290 310 5000 42 90 GHPA1-D-3 2.1 2.9 270 290 310 6000 41 88 GHPA1-D-5 3.5 4.9 270 290 310 5000 43 92 GHPA1-D-6 4.1 5.9 270 290 310 4000 44 94 GHPA1-D-7 5.2 7.4 260 275 290 4000 45.5 97 GHPA1-D-13 9.3 13.3 210 225 240 2600 51.5 109 GHPA1-D-16 11.0 15.7 200 215 230 2200 54 114 3 cm /rev litres/mim bar bar bar rpm mm mm GHPA1-D-11 7.6 10.8 230 245 260 3200 49 104 1500 rev/min P P P Speed L M 1 2 3 GHPA1-D-9 6.2 8.8 260 275 290 3800 47 100 GHPA1-D-20 13.8 19.7 180 195 210 1800 58 122
Gear Pumps GHPI1 Series Standard ports: M6 threads depth 13 mm. 23 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony Type Displacement Flow at Maximum Pressure Maximum Dimensions GHPI1-6 4.1 5.9 270 290 310 4000 50 100 GHPI1-2 1.4 2.0 270 290 310 6000 46 92 GHPI1-20 13.8 19.7 180 195 210 1800 64 128 GHPI1-5 3.5 4.9 270 290 310 5000 49 98 GHPI1-9 6.2 8.8 260 275 290 3800 53 106 GHPI1-13 9.3 13.3 210 225 240 2600 57.5 115 1500 rev/min P P P Speed L M 1 2 3 3 cm /rev litres/mim bar bar bar rpm mm mm GHPI1-4 2.8 3.9 270 290 310 5000 48 96 GHPI1-16 11.0 15.7 200 215 230 2200 60 120 GHPI1-3 2.1 2.9 270 290 310 6000 47 94 GHPI1-7 5.2 7.4 260 275 290 4000 51.5 103 GHPI1-11 7.6 10.8 230 245 260 3200 55 110 OUTLET INLET
Gear Pumps GHPP1 Series Standard ports: M6 threads depth 13 mm. 24 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET GHPP1-D-11 7.6 10.8 230 245 260 3200 55 103 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M 1 2 3 GHPP1-D-2 1.4 2.0 270 290 310 6000 46 85 3 cm /rev litres/mim bar bar bar rpm mm mm GHPP1-D-3 2.1 2.9 270 290 310 6000 47 87 GHPP1-D-4 2.8 3.9 270 290 310 5000 48 89 GHPP1-D-5 3.5 4.9 270 290 310 5000 49 91 GHPP1-D-6 4.1 5.9 270 290 310 4000 50 93 GHPP1-D-7 5.2 7.4 260 275 290 4000 51.5 96 GHPP1-D-9 6.2 8.8 260 275 290 3800 53 99 GHPP1-D-20 13.8 19.7 180 195 210 1800 64 121 GHPP1-D-13 9.3 13.3 210 225 240 2600 57.5 108 GHPP1-D-16 11.0 15.7 200 215 230 2200 60 113
Gear Pumps ALP2 - GHP2 Series 25 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony D Type Rotation Size Ports° Seals° Options° omit A** A3** °° Clockwise S Counter Clockwise Series Pump Standard Types ALPA2-D-22 = front element ALP series, group 2, european flange, clockwise rotation, 16 cm³/rev displacement, 1:8 tapered shaft, flanged ports E type, standard seals. The product data sheets show our standard model types. The synoptic tables for flanges, shafts and ports show all the possible configurations. For further details about the availability of each configuration please contact jbj Techniques technical office, email: info@jbj.co.uk or telephone: +44 (0)1737 767493 GHPP2-D-13 = rear element GHP series, group 2, clockwise rotation, 9,6 cm³/rev displacement, flanged ports E type, standard seals. ALPI2-16 =mediumelementALP series, group 2, clockwise or anti-clockwise rotation, 11,5 cm³/rev displacement, flanged ports E type, standard seals. Ordering Code Shaft* ** = to be specified only A element ... **T AS (separate inlet) Options °° = only for GHP series ° = to be specified if not standard °°AC common inlet * = for the modular element don’t specify direction of rotation Seals omit (T range = -10°C + 80°C) V **TR reinforced seal. **OR 6 9 10 12 13 16 20 22 25 30 34 BK1** Element ALP GHP A2 I2 P2 omit* * ° BK2** BK4** BK7** 37 40 50
Gear Pumps ALPA2 Series Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. Accessories supplied with the standard pump: woodruff key (code 522057), M12x1.5 hexagonal nut (code 523016), washer (code 523005). 26 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony ALPA2-D-20 14.1 20.1 230 250 270 4000 53 108.5 19 13 M8 40 ALPA2-D-10 7.0 10.0 250 270 290 4000 47.5 97.5 13 13 M8 40 ALPA2-D-16 11.5 16.4 230 250 270 4000 51 10.,5 19 13 M8 40 Type Displacement Flow at Maximum Pressure Maximum Dimensions ALPA2-D-6 4.5 6.4 250 270 290 4000 45.5 93.5 13 13 M6 30 ALPA2-D-12 8.3 11.8 250 270 290 3500 48.5 99.5 13 13 M8 40 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm 1500 rev/min P P P Speed L M d D C H 1 2 3 ALPA2-D-13 9.6 13.7 250 270 290 3000 49.5 10.5 13 13 M8 40 ALPA2-D-9 6.4 9.1 250 270 290 4000 47 96.5 13 13 M6 30 ALPA2-D-40 28.2 40.1 170 185 200 2500 64 130.5 19 19 M8 40 ALPA2-D-25 17.9 25.5 210 225 240 3600 56 114.5 19 13 M8 40 ALPA2-D-34 23.7 33.7 180 195 210 3000 60.5 123.5 19 19 M8 40 ALPA2-D-30 21.1 30.1 180 195 210 3200 58.5 119.5 19 19 M8 40 ALPA2-D-37 25.5 36.4 170 185 200 2800 62 126.5 19 19 M8 40 ALPA2-D-22 16.0 22.8 210 225 240 4000 54.5 111.5 19 13 M8 40 ALPA2-D-50 35.2 50.2 140 155 170 2500 69.5 141.5 21 19 M8 40 OUTLET INLET
Gear Pumps ALPI2 Series Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. 27 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony ALPI2-D-6 4.5 6.4 250 270 290 4000 51.5 103 13 13 M6 30 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D C H 1 2 3 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm ALPI2-D-9 6.4 9.1 250 270 290 4000 53 106 13 133 M6 30 ALPI2-D-10 7.0 10.0 250 270 290 4000 53.5 107 13 13 M8 40 ALPI2-D-12 8.3 11.8 250 270 290 3500 54.5 109 13 13 M8 40 ALPI2-D-13 9.6 13.7 250 270 290 3000 55.5 111 13 13 M8 40 ALPI2-D-22 16.0 22.8 210 225 240 4000 60.5 121 13 19 M8 40 ALPI2-D-30 21.1 30.1 180 195 210 3200 64.5 129 19 19 M8 40 ALPI2-D-37 25.5 36.4 170 185 200 2800 68 136 19 19 M8 40 ALPI2-D-40 28.2 40.1 170 185 200 2500 70 140 19 19 M8 40 ALPI2-D-34 23.7 33.7 180 195 210 3000 66.5 133 19 19 M8 40 ALPI2-D-50 35.2 50.2 140 155 170 2500 75.5 151 19 21 M8 40 ALPI2-D-25 17.9 25.5 210 225 240 3600 62 124 13 19 M8 40 ALPI2-D-16 11.5 16.4 230 250 270 4000 57 114 13 19 M8 40 ALPI2-D-20 14.1 20.1 230 250 270 4000 59 118 13 19 M8 40 OUTLET INLET
Gear Pumps ALPP2 Series Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. 28 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony 1500 rev/min P P P Speed L M d D C H 1 2 3 ALPP2-D-6 4.5 6.4 250 270 290 4000 51.5 99.5 13 13 M6 30 ALPP2-D-12 8.3 11.8 250 270 290 3500 54.5 105.5 13 13 M8 40 ALPP2-D-20 14.1 20.1 230 250 270 4000 59 114.5 13 19 M8 40 ALPP2-D-16 11.5 16.4 230 250 270 4000 57 110.5 13 19 M8 40 ALPP2-D-9 6.4 9.1 250 270 290 4000 53 102.5 13 13 M6 30 Type Displacement Flow at Maximum Pressure Maximum Dimensions 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm ALPP2-D-10 7.0 10.0 250 270 290 4000 53.5 103.5 13 13 M8 40 ALPP2-D-13 9.6 13.7 250 270 290 3000 55.5 107.5 13 13 M8 40 ALPP2-D-30 21.1 30.1 180 195 210 3200 64.5 125.5 19 19 M8 40 ALPP2-D-25 17.9 25.5 210 225 240 3600 62 120.5 13 19 M8 40 ALPP2-D-34 23.7 33.7 180 195 210 3000 66.5 129.5 19 19 M8 40 ALPP2-D-40 28.2 40.1 170 185 200 2500 70 136.5 19 19 M8 40 ALPP2-D-50 35.2 50.2 140 155 170 2500 70 136.5 19 19 M8 40 ALPP2-D-37 25.5 36.4 170 185 200 2800 68 132.5 19 19 M8 40 ALPP2-D-22 16.0 22.8 210 225 240 4000 60.5 117.5 13 19 M8 40 OUTLET INLET
Gear Pumps GHPA2 Series Accessories supplied with the standard pump: woodruff key (code 522057), M12 x 1.5 hexagonal nut (code 523016), washer (code 523005). Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. 29 GHPA2-D-40 28.2 40.1 200 215 230 2500 64 134 19 19 M8 40 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm GHPA2-D-6 4.5 6.4 280 295 310 4000 45.5 97 13 13 M6 30 GHPA2-D-12 8.3 11.8 280 295 310 3500 48.5 103 13 13 M8 40 GHPA2-D-13 9.6 13.7 280 295 310 3000 49.5 105 13 13 M8 40 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D h H 1 2 3 GHPA2-D-22 16.0 22.8 260 275 290 4000 54.5 115 19 13 M8 40 GHPA2-D-10 7.0 10.0 280 295 310 4000 47.5 101 13 13 M8 40 GHPA2-D-16 11.5 16.4 280 295 310 4000 51 108 19 13 M8 40 GHPA2-D-9 6.4 9.1 280 295 310 4000 47 100 13 13 M6 30 GHPA2-D-25 17.9 25.5 260 75 290 3600 56 118 19 13 M8 40 GHPA2-D-30 21.1 30.1 230 245 260 3200 58.5 123 19 19 M8 40 GHPA2-D-20 14.1 20.1 260 275 290 4000 53 112 19 13 M8 40 GHPA2-D-34 23.7 33.7 230 245 260 3000 60.5 127 19 19 M8 40 GHPA2-D-37 25.5 36.4 210 225 240 2800 62 130 19 19 M8 40 GHPA2-D-50 35.2 50.2 160 175 190 2500 69.5 145 21 19 M8 40 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET
Gear Pumps GHPI2 Series Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm. 30 GHPI2-D-10 7.0 10.0 280 295 310 4000 53.5 107 13 13 M8 40 GHPI2-D-13 9.6 13.7 280 295 310 3000 55.5 111 13 13 M8 40 GHPI2-D-20 14.1 20.1 260 275 290 4000 59 118 13 19 M8 40 GHPI2-D-37 25.5 36.4 210 225 240 2800 68 136 19 19 M8 40 GHPI2-D-25 17.9 25.5 260 75 290 3600 62 124 13 19 M8 40 GHPI2-D-6 4.5 6.4 280 295 310 4000 51.5 103 13 13 M6 30 GHPI2-D-22 16.0 22.8 260 275 290 4000 60.5 121 13 19 M8 40 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D C H 1 2 3 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm GHPI2-D-9 6.4 9.1 280 295 310 4000 53 106 13 13 M6 30 GHPI2-D-12 8.3 11.8 280 295 310 3500 54.5 109 13 13 M8 40 GHPI2-D-16 11.5 16.4 280 295 310 4000 57 114 13 19 M8 40 GHPI2-D-30 21.1 30.1 230 245 260 3200 64.5 129 19 19 M8 40 GHPI2-D-34 23.7 33.7 230 245 260 3000 66.5 133 19 19 M8 40 GHPI2-D-40 28.2 40.1 200 215 230 2500 70 140 19 19 M8 40 GHPI2-D-50 35.2 50.2 160 175 190 2500 75.5 151 19 19 M8 40 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET
Gear Pumps GHPP2 Series Standard ports: M6 threads depth 13 mm, M8 threads depth 17 mm 31 Type Displacement Flow at Maximum Pressure Maximum Dimensions 1500 rev/min P P P Speed L M d D C H 1 2 3 3 cm /rev litres/mim bar bar bar rpm mm mm mm mm mm GHPP2-D-6 4.5 6.4 280 295 310 4000 51.5 98 13 13 M6 30 GHPP2-D-9 6.4 9.1 280 295 310 4000 53 101 13 13 M6 30 GHPP2-D-10 7.0 10.0 280 295 310 4000 53.5 102 13 13 M8 40 GHPP2-D-12 8.3 11.8 280 295 310 3500 54.5 104 13 13 M8 40 GHPP2-D-34 23.7 33.7 230 245 260 3000 66.5 128 19 19 M8 40 GHPP2-D-20 14.1 20.1 260 275 290 4000 59 113 13 19 M8 40 GHPP2-D-13 9.6 13.7 280 295 310 3000 55.5 106 13 13 M8 40 GHPP2-D-30 21.1 30.1 230 245 260 3200 64.5 124 19 19 M8 40 GHPP2-D-22 16.0 22.8 260 275 290 4000 60.5 116 13 19 M8 40 GHPP2-D-16 11.5 16.4 280 295 310 4000 57 109 13 19 M8 40 GHPP2-D-37 25.5 36.4 210 225 240 2800 68 131 19 19 M8 40 GHPP2-D-40 28.2 40.1 200 215 230 2500 70 135 19 19 M8 40 GHPP2-D-25 17.9 25.5 260 75 290 3600 62 119 13 19 M8 40 GHPP2-D-50 35.2 50.2 160 175 190 2500 75.5 146 19 21 M8 40 www.jbj.co.uk/gear-pumps.html #DriveLineHarmony OUTLET INLET
